Foundationless Jib Crane



A foundationless jib crane is a floor-mounted, freestanding lifting system for localized handling in existing facilities. It fastens onto a certified reinforced concrete slab via post‑installed anchors. No excavation or separate poured crane foundation is required ahead of site installation.

This system fits light‑duty lifting tasks for assembly stations, machine‑loading positions, welding bays, maintenance zones and packing lines. Its enlarged base structure distributes lifting forces through the existing slab while the boom provides a defined handling radius close to the workstation.

A foundationless jib crane does not eliminate structural requirements. Site assessment shall cover the existing concrete floor, steel reinforcement, anchoring zone and overall support conditions. Evaluation takes into account target load capacity, boom reach, hoist weight as well as actual duty‑cycle requirements.

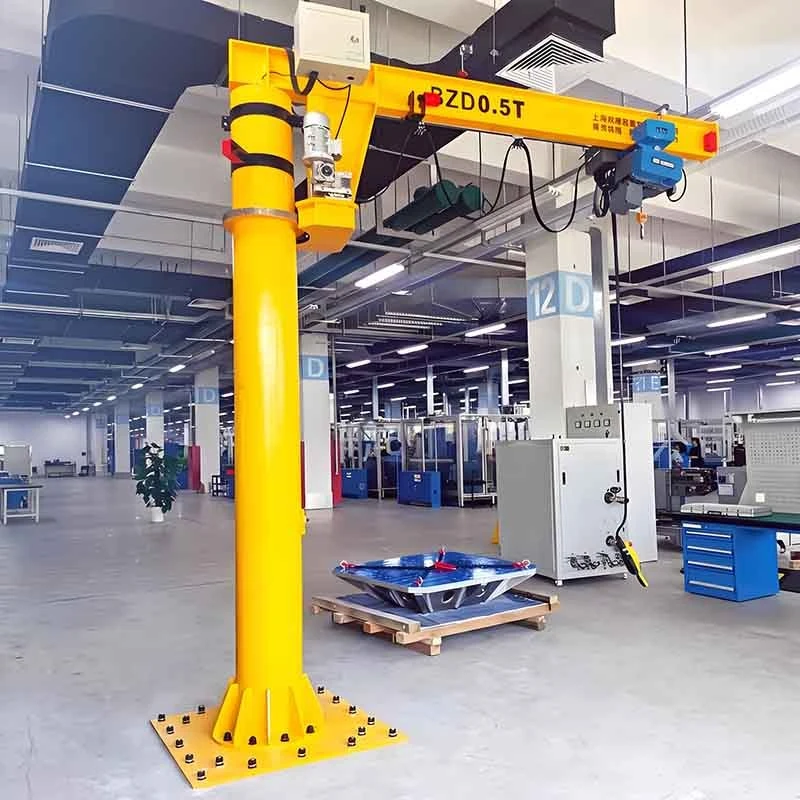

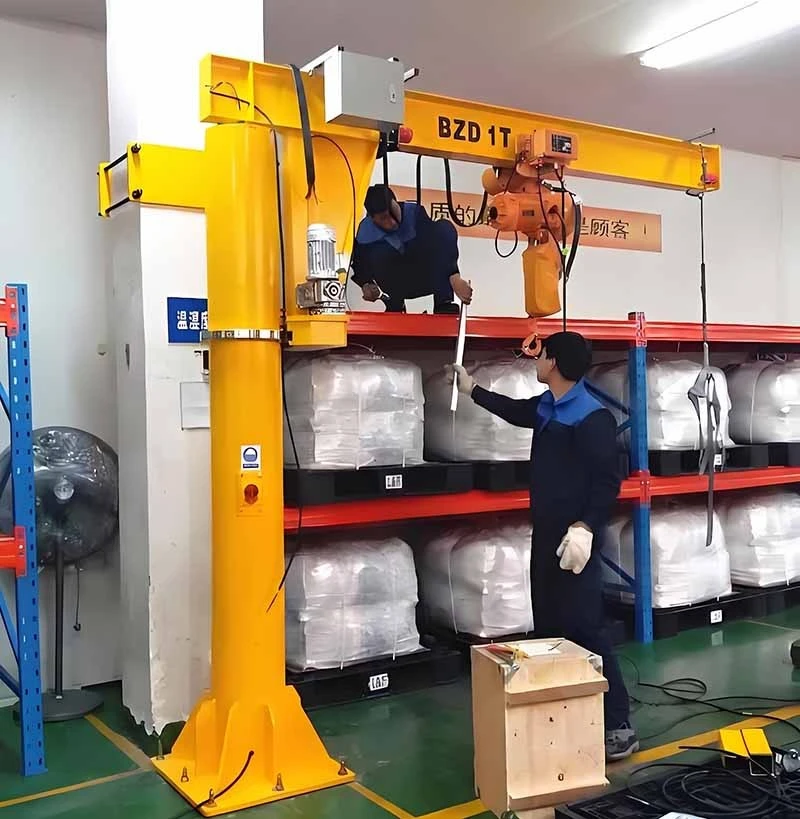

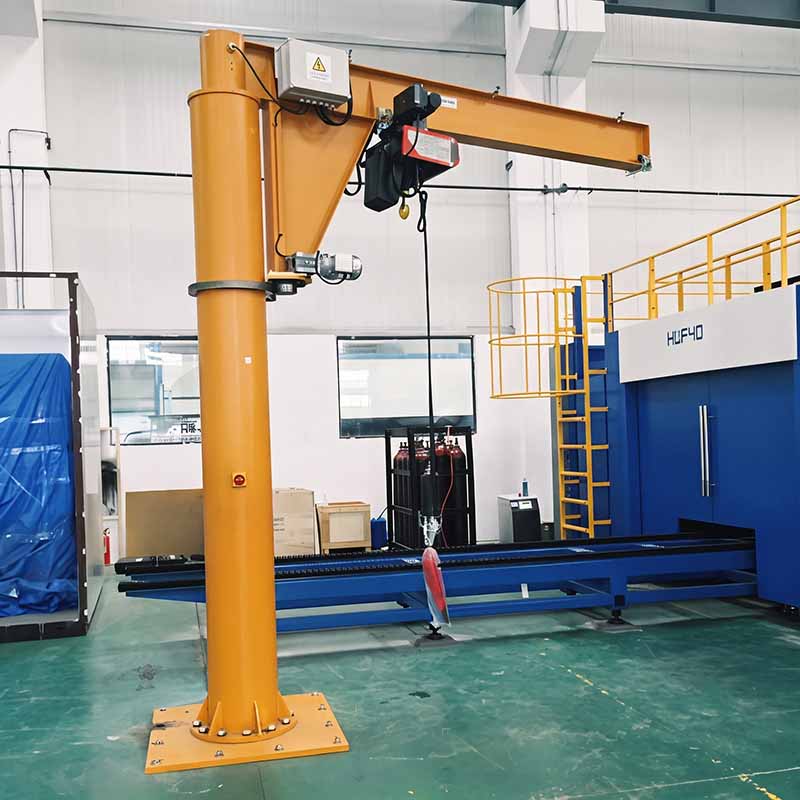

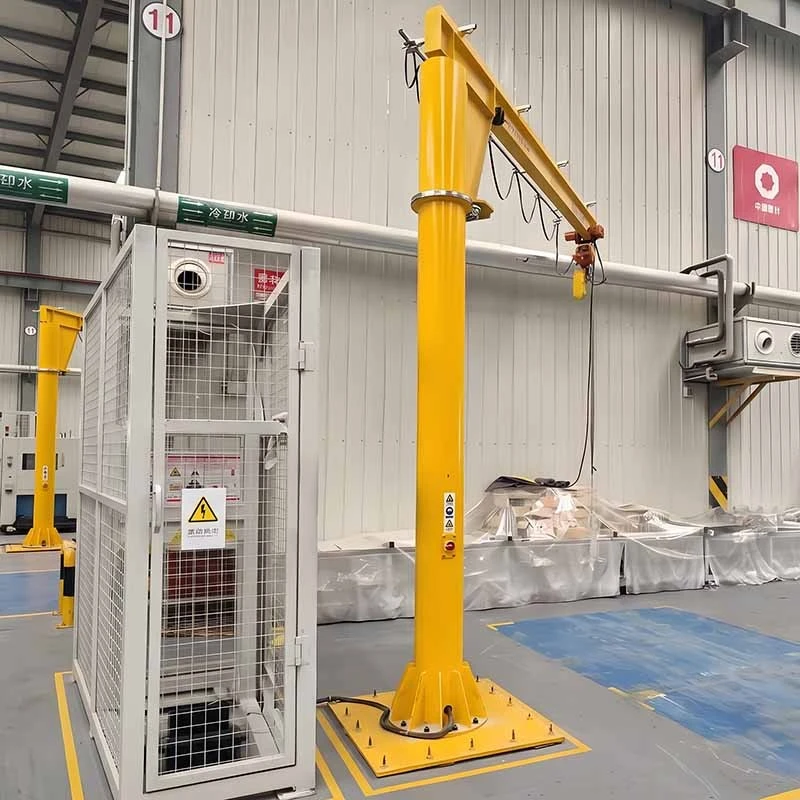

The crane includes a steel mast, reinforced base assembly, boom, slewing head, trolley path, and post-installed anchoring system. Gussets stiffen the mast-to-base connection under lifting and slewing loads. Manual or powered rotation, rotation stops, boom locks, and compatible hoisting equipment can be selected according to the application.





Parameter	Typical Configuration
Rated capacity	Light-duty lifting, commonly up to 1,000 kg; final capacity depends on the crane configuration and slab verification.
Boom span	Selected around the required work area and permissible overturning load.
Under-boom height	Matched to the load height, hook travel, hoist headroom, and clearance.
Rotation	Up to 360 degrees where the selected design and site clearance permit.
Installation	Post-installed anchors on a qualified reinforced concrete slab; no dedicated pre-poured crane footing.

Final dimensions, capacity, hoist dead weight, and anchor arrangement must be reviewed as one load case.





Both designs are freestanding jib cranes, but they use different installation methods. A foundationless jib crane is installed on an existing, engineered reinforced concrete slab using an enlarged base and post-installed anchors. It is intended for light-duty lifting where the slab is suitable and a dedicated embedded footing is not required.

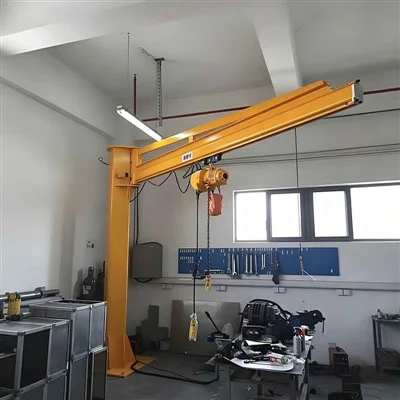

A pillar jib crane is normally selected for higher capacities, longer spans, heavier duty, or conditions that require a dedicated reinforced concrete foundation. It is not interchangeable with a foundationless jib crane simply because both have a floor-mounted mast.







The crane must only be mounted on an approved reinforced concrete area. Before installation, confirm:

• Slab thickness, reinforcement, condition, and support below the slab.
• Absence of unsuitable cracks, expansion joints, voids, trenches, or unsupported edges in the anchor zone.
• Anchor type, embedment, spacing, and edge distance for the project load case.
• Clearance for boom rotation, load travel, controls, and operator access.
• Indoor or outdoor exposure, corrosion protection, and local compliance requirements.

After installation, the crane and anchoring zone should be inspected and proof tested according to the applicable project requirements before operation.





Foundationless jib cranes serve sites with fixed work tasks that call for frequent short‑distance lifts, removing the need for a purpose‑built crane footing. Common use cases cover component assembly, machine tending, welding work, maintenance operations, fixture loading, packaging and workstation retrofits.

To achieve proper unit selection, supply full parameters including rated load (hoist and lifting attachment included), required boom span, under‑boom height, lifting frequency, rotation specifications, site operating environment and available slab information.







What is a foundationless jib crane?

It is a floor-mounted freestanding jib crane anchored to an existing qualified reinforced concrete slab. It does not require a separate pre-poured or pre-embedded crane foundation.

Does a foundationless jib crane need a concrete floor?

Yes. It requires a reinforced concrete slab capable of carrying the vertical, lateral, and overturning loads of the crane. Floor thickness alone does not confirm suitability; reinforcement, cracks, joints, anchors, and support conditions must also be checked.

How is it different from a pillar jib crane?

A pillar jib crane normally uses a dedicated reinforced concrete foundation. A foundationless jib crane relies on a verified existing slab and post-installed anchors, making it more suitable for lighter-duty lifting and retrofit applications.

Can it be installed near a floor joint or crack?

Not without engineering approval. Cracks, expansion joints, slab edges, trenches, and voids can reduce anchor-zone capacity and must be assessed before the base location is confirmed.

Can a foundationless jib crane rotate 360 degrees?

Yes, where the selected crane configuration, surrounding clearance, and power or air routing allow full rotation. Rotation stops can be used when a defined operating sector is required.

Can the crane be relocated?

Yes, subject to a new slab and anchor assessment at the next location. The existing anchors must not be assumed suitable for reuse.





A foundationless jib crane reduces the civil work associated with a dedicated crane footing while retaining the structural discipline required for safe lifting. It is a practical option when the existing reinforced concrete slab can be verified for the selected capacity, reach, anchoring system, and operating duty.
