Crane Spare Parts

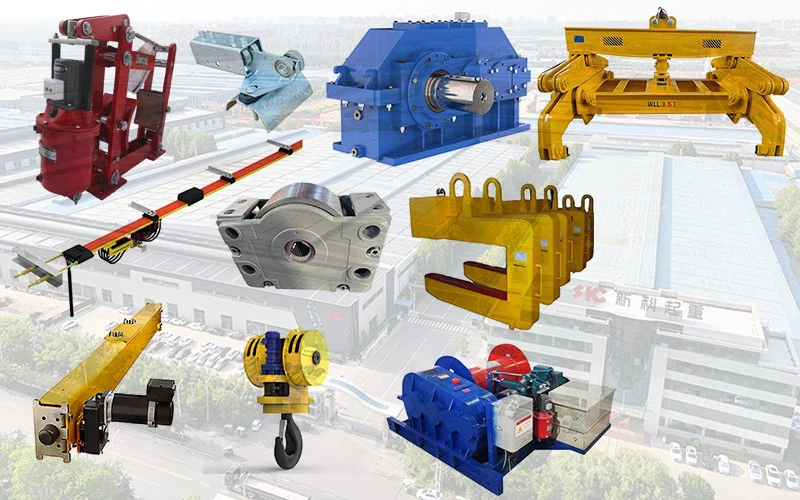

A: Kinocranes provides an end-to-end supply chain for critical overhead crane spare parts, covering all structural, mechanical, and electrical subsystems. We maintain extensive inventory depth to support high-duty industrial operations across several categories:

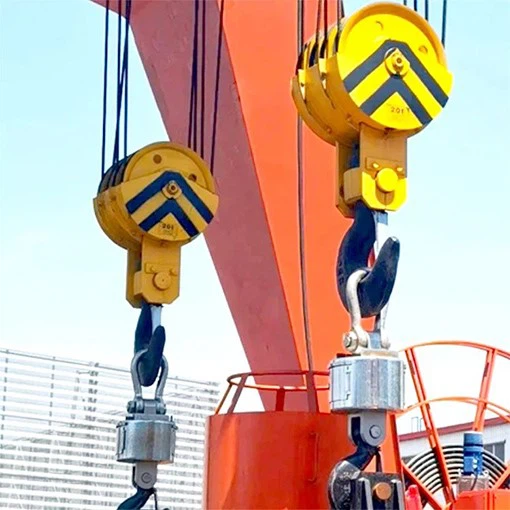

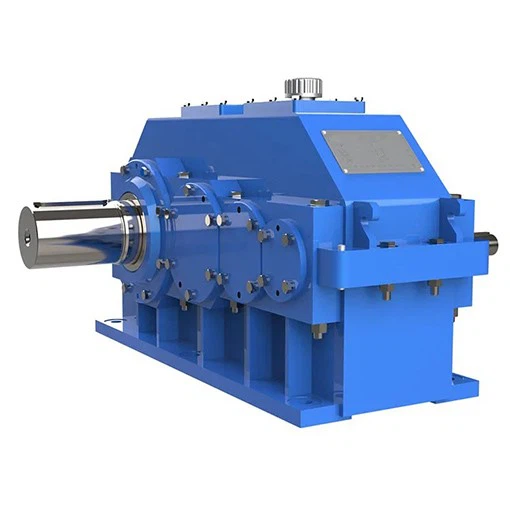

• Mechanical Assemblies: Precision-engineered crane wheel assemblies, high-torque crane gearboxes, and heavy-duty hook blocks conforming to ISO 4878.

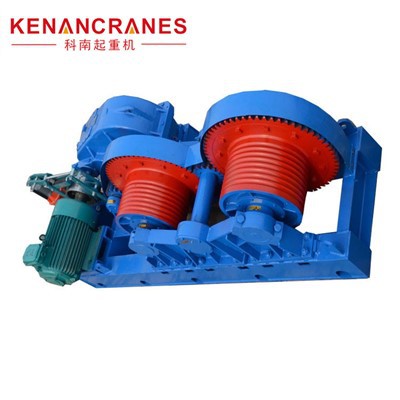

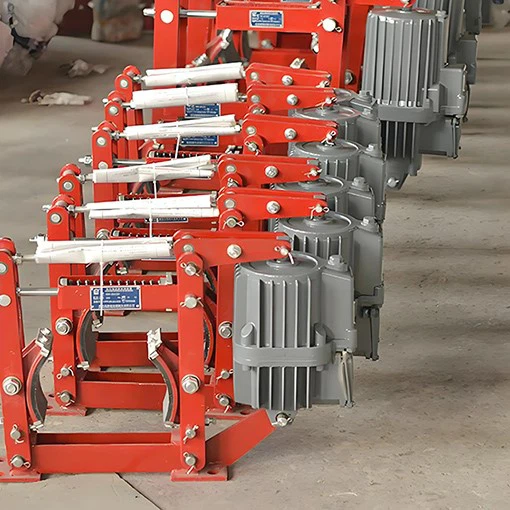

• Hoisting Mechanisms: Including high-tensile crane wire ropes, specialized winch drums, and industrial brake systems designed for rapid response.

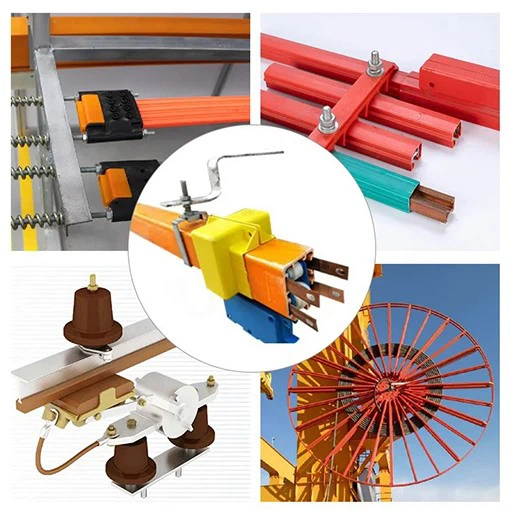

• Electrification & Controls: Advanced conductor rail systems, durable festoon cables, and ergonomic overhead crane remote control units with multi-frequency stability.

 Every supplied component is built to meet or exceed standard equipment specifications.Advanced CNC machining equipment ensures all load-bearing surfaces hold a tolerance of ±0.02mm.Each part fits perfectly with existing equipment and retains stable structural performance under maximum loads.

A: Yes. Our engineering division specializes in manufacturing direct OEM replacement parts that offer seamless interchangeability with leading international crane brands.

To ensure 100% compatibility, our process follows a rigorous technical workflow:

1. Reverse Engineering: We analyze component dimensions and metallurgical properties from customer samples or technical manuals.

2. Material Verification: Utilizing ultrasonic and magnetic particle inspection to ensure the replacement part matches or exceeds the original’s material grade.

3. Cross-Reference Validation: Checking all mechanical performance curves and interface dimensions before final production.

This technical rigor ensures that you can source high-quality crane components without being locked into expensive OEM distribution channels, significantly reducing your long-term maintenance costs without compromising equipment safety.

A: Absolutely. Kinocranes provides custom manufacturing services for complex crane components. Many such parts are out of stock or require site-specific modification.We adopt multiple qualified materials including EN 10083 alloy steel and EN 1563 ductile iron. These materials adapt to various harsh on-site operating environments.

Our custom manufacturing capabilities include:

• Precision Machining: CNC-controlled production for components ranging from small fasteners to 50-ton structural assemblies.
• Surface Treatment: Including specialized heat treatment to increase surface hardness and wear resistance by up to 40%.
• Non-Destructive Testing (NDT): Full ultrasonic and material traceability reports provided with every custom order.

By submitting CAD files in STEP or DWG formats, our engineers can provide a matched technical specification within 24 hours. This enables us to solve unique engineering bottlenecks, such as specialized lifting clamps or custom gantry crane wheels, within a typical lead time of 15–30 days.

A: Intensive industrial material handling puts constant mechanical stress and friction on many overhead crane spare parts. Factories need regular replacement plans to prevent unexpected production halts.

Maintaining a strategic inventory of these crane components is essential for any high-availability facility. We recommend a structured preventative maintenance schedule—monthly visual sweeps and quarterly precision measurements—to identify these wear patterns before they lead to catastrophic component failure.

A: Crane wire rope retirement follows ISO 4309 standards closely to guarantee safe operation. Internal fatigue usually develops before visible external damage, making routine inspections essential.

Replace the wire rope right away once you spot any of these critical issues:

• Mechanical Damage: Bird-caging, permanent kinks, or concentrated wire breaks beyond allowed limits.
• Dimensional Loss: Over 7% reduction of the nominal rope diameter on any drum section.
• Environmental Degradation: Heavy corrosion or heat discoloration that weakens tensile strength.

Standard maintenance greatly lengthens rope service life. We suggest applying dedicated synthetic lubricants every three months to stop oxidation. Still, any wire rope used for over five years needs replacement for safety. Minor surface wear can be misleading, since the inner core may have sustained permanent damage.

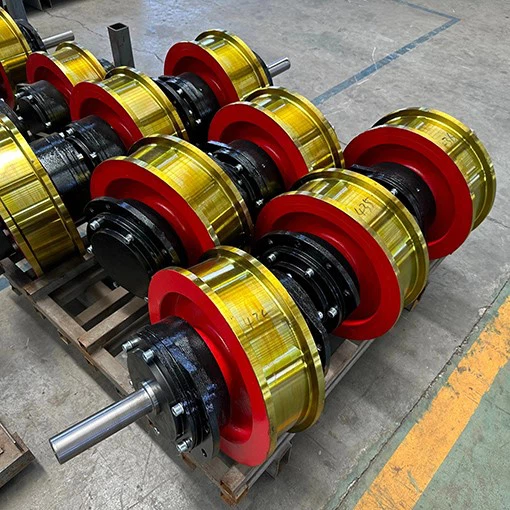

A: Industrial crane wheels (including overhead crane wheels and gantry crane wheels) are high-load components that directly affect the alignment and energy efficiency of the entire system.

Replacement is mandatory when wear levels reach the following mechanical thresholds:

1. Flange Wear: When the flange thickness reduces by more than 50% of its original dimension.

2. Tread Integrity: If the diameter of the tread reduces by more than 10% or if surface pitting exceeds 2mm in depth.

3. Structural Fatigue: The detection of any circumferential cracks or spalling through magnetic particle inspection (NDT).

Using worn trolley wheels causes bridge skew, extra friction on end carriages and faster abrasion of conductor rails.To keep stable equipment performance, measure wheels with precision calipers every quarter and run NDT tests yearly. These checks detect hidden fatigue cracks early and avoid wheel breakage.

A: Accurate identification of overhead crane spare parts is essential to prevent installation delays. The most reliable method is to reference the equipment data plate located on the bridge structure or the specific housing of the component in question. To assist our sales team, please provide the following information:

• OEM Data: The manufacturer’s part number and the crane’s unique serial number found in the technical manual.
• Physical Evidence:High-resolution photographs showing any stamped markings or serial tags on the part (e.g., on a crane gearbox or industrial motor).
• Technical Dimensions: If no markings are visible, provide key dimensions such as shaft diameter, bolt hole pitch, and overall length.

Our engineering team maintains a vast cross-reference database for international brands. Once the data is submitted, we can typically provide a confirmed part match and formal quotation within 24 hours, even for legacy systems where original documentation has been lost.

A: Kinocranes follows strict ISO 9001:2015 quality management rules. All crane parts can be fully tracked from raw materials through final assembly.We focus on mechanical reliability to satisfy tough safety standards for heavy industrial use.

Our certification framework includes:

• Material Integrity: EN 10204 3.1 material test certificates come with all load-bearing parts.
• Safety Compliance: CE marking complies with Machinery Directive 2006/42/EC as well as FEM and DIN engineering standards.
• Performance Testing: Key assemblies like crane hooks and support brackets undergo 150% overload testing. All load-bearing welds receive full ultrasonic NDT checks.

These specifications make our crane spare parts fit global safety codes such as ISO 4878 and IEC 61508. Complete technical paperwork is supplied with every order, offering valid proof for your site safety audits.

A: We offer an efficient logistics network aimed at minimizing the downtime of emergency crane repairs. For the overhead crane spare parts in sufficient stock, we can choose air freight, land transportation or sea transportation from China.

Typical delivery timelines are categorized by component type:

• Standard Inventory: 3–7 days via air freight for critical items like conductor rail collectors or remote control units.
• Manufactured Parts: 15–30 days for CNC-machined items like crane wheels or gearbox housings.

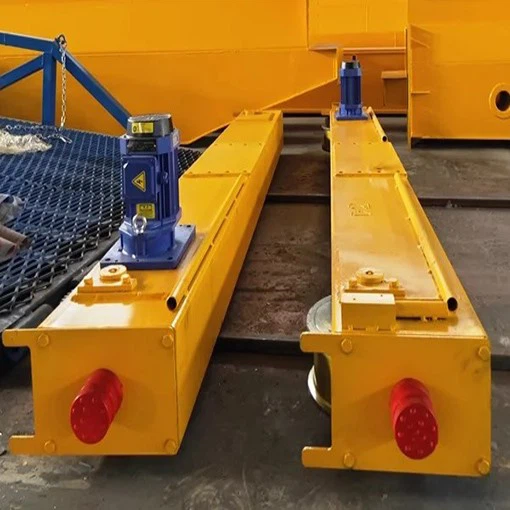

• Large Structural Units: 30–45days via sea freight for end carriages or complete hoist mechanisms.

All shipments are accompanied by pre-cleared customs documentation and commercial invoicing to ensure rapid port arrival. We provide real-time tracking for every order, allowing your maintenance team to coordinate the installation schedule precisely with the part’s arrival.

A: Choosing Kinocranes means partnering with a manufacturer that prioritizes engineering precision and direct factory value. We solve the common industry challenges of high OEM markups and poor quality aftermarket substitutes by controlling the entire production process.

Our value proposition is built on three pillars:

1. Extended Service Life: Our exclusive heat treatment boosts wear resistance of crane wheels and gears by up to 40%. Their service lifespan is two to three times longer than ordinary replacement parts.

2. Engineering Support: More than 180 professional technicians offer free installation instructions and cross-brand fault diagnosis covering over 15 mainstream crane brands.

3. Certified Reliability: All components are delivered with complete EN 10204 3.1 material certifications and NDT inspection reports, so cost savings never come at the expense of operational safety.

Kinocranes has over 1,200 staff and has exported products worldwide since 2008. We combine OEM-level technical expertise with the flexible production capacity of a specialized crane component manufacturer. We are committed to being your long-term partner in hoist and crane maintenance, delivering high-durability solutions that keep your facility running at peak efficiency.
