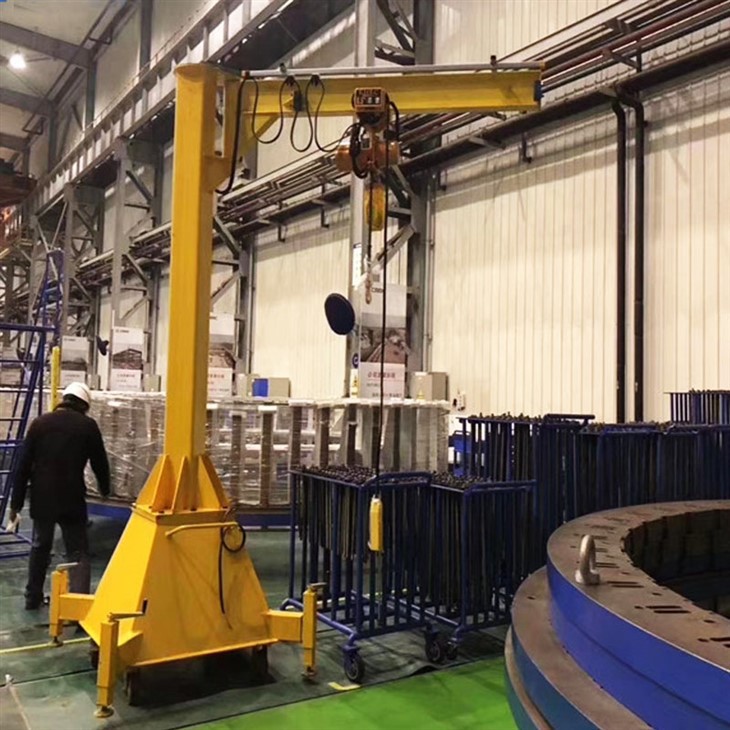

Mobile Floor Jib Crane
Mobile Floor Jib Crane
Mobile Floor Jib Crane

Mobile Floor Jib Crane

Send Inquiry

Chat Now

Product Introduction

Overview

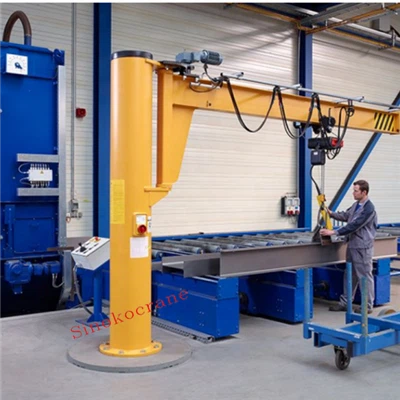

floor mounted jib crane

A floor mounted jib crane is a type of jib crane that is supported by a concrete mast mounted on the floor vertically. It is designed to provide lifting and positioning capabilities in a specific area, typically within a work cell or workstation. The crane is fixed to the floor and allows for 360-degree rotation, providing flexibility in moving loads within its reach. Floor mounted jib cranes are commonly used in industrial settings where there is a need for repetitive or unique lifting tasks. They can be operated manually and are often used to supplement the lifting capacity of other main cranes. The load capacity of floor mounted jib cranes can vary, ranging from smaller capacities up to 5 tons or more.

Products Parameter

Rated Capacity	t	0.5	1	2	3	5	10
Beam length	mm	2000~6000
Lifting height	mm	2000~6000
Lifting speed	m/min	8; 8/0.8
Travelling speed	m/min	10; 20
Turning speed	r/min	0.76	0.69	0.6	0.53	0.48	0.46
Turning degree	degree	360°
Duty Class		A3
Power source		380V, 50HZ, 3 phase (or other standard)
Working temperature		-20~42°C
Control model		Pendant pushbutton control or remote control

Product Features

1. Compact structure: Easy to improve efficiency in narrow working area.
2. Wide rotating angle: Free to rotate from 90-360 degree, special designed rolled bearing to achieve smooth travel with low noise.
3. Cooper motor: Copper coil motor with strong drive, long service life and heavy duty.
4. Stable pillar bottom: To be fastened with Class 8.8 strong tensile bolt, more durable and safe working.
