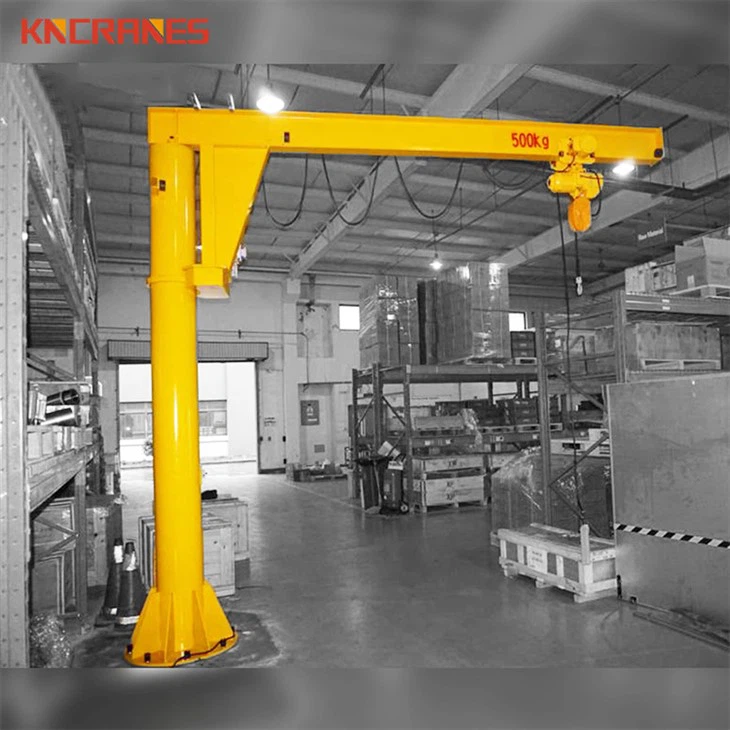

3 Ton Jib Crane
What Is a 3 Ton Jib Crane?
Jib Crane is a kind of small and medium-sized lifting equipment with the recent development.Its unique structure, safe and reliable.With high efficiency, energy conservation, the provincial time, effort, and flexible and so on. And it can operate freely in 3D space,and it can show its superiority more especially when its working in the short-range and intensive lifting occasions.Widely used in workshops, warehouses, docks and other fixed place.
With a 3,000 kg safe working load (SWL), this crane fills the gap between light-duty 1–2 ton units and heavier 5–10 ton systems. It is the most requested capacity range for general manufacturing and logistics applications - capable of handling steel bundles, engine blocks, mold assemblies, and palletized goods.
Why choose a jib crane over a forklift or overhead crane?
- Lower cost than installing a full overhead crane system
- Faster setup - most units ship within 6 weeks
- Flexible placement - can be relocated if floor-mounted with a portable base
- Precision handling - operator controls load positioning in tight spaces that forklifts can't reach
3 Ton Jib Crane Specifications (BZ03 Model)
| Capacity(KG) | 500 KG | 1000 KG | 2000 KG | 3000 KG | 5000 KG |
| Model | BZD0.5 | BZ01 | BZ02 | BZ03 | BZ05 |
| Beam Material | H Beam & KBK Beam | ||||
| Travelling Type | Electrical & Manual | Electrical | Electrical | Electrical | |
| Revolving Type | Electrical & Manual | Electrical | Electrical | Electrical | |
| Revolving radius | 1m - 7m | 1m - 7m | 1m - 7m | 1m - 7m | 1m - 7m |
| Lifting Height | 2m - 10m | 2m - 10m | 2m - 10m | 2m - 10m | 2m - 10m |
| Total Height | 2m - 10m | 2m - 10m | 2m - 10m | 2m - 10m | 2m - 10m |
| Revolving Angle | 180° & 270°& 360° | ||||
| Lifting Speed | 7.2/2.4 | 6.9/2.3 | 6.6/2.2 | 6.6/2.2 | 2.7/0.9 |
Products Features
- Capacities from 250 kgs to 5 Ton
- Standard span upto 20 feet
- 360 degree rotation
- Designed for permanent concrete foundation
- Base plates assembly is secured by means of anchor bolts to a prescribed reinforced concrete foundation, with the number of anchor bolts varying with the capacity of the jib crane.
- The pipe or colomn is designed to give maximum strength and minimum deflection to resist bending, buckling and crushing. The top bearing assembly utilizes a tapered roller bearing provided with grease fitting for proper lubrication.
Types of 3 Ton Jib Crane
1. Wall Travelling Jib Crane
2.Articulated Jib Crane
3. Portable Jib Crane
4. 360° Jib Crane
How to Choose the Right 3 Ton Jib Crane
Load capacity is not the only standard for crane selection. Here are five vital aspects for reference.
1.Rated Load vs Actual Working Weight
If your daily lifting weight stays between 1.5 and 2.5 tons, a 3-ton jib crane is your sound choice. The spare load allowance covers fittings weight and dynamic load changes in real work.
2.Boom Radius (Working Area)
Measure from the pivot point to the farthest load placement point. Longer booms reduce effective capacity at the tip - tell us your radius and we'll confirm sufficiency.
3.Lifting Height
Calculate floor to highest hook position needed. Account for load height, sling length, and minimum hook approach distance.
4.Rotation and Duty Cycle
Light duty (≤20 lifts/day): manual rotation. Medium duty (20–100): electric. Heavy duty (100+): electric with frequency control.
5.Installation Environment
Indoor: standard finish. Outdoor/humid: hot-dip galvanized or epoxy. Explosive atmosphere: explosion-proof. Limited headroom: articulated design.

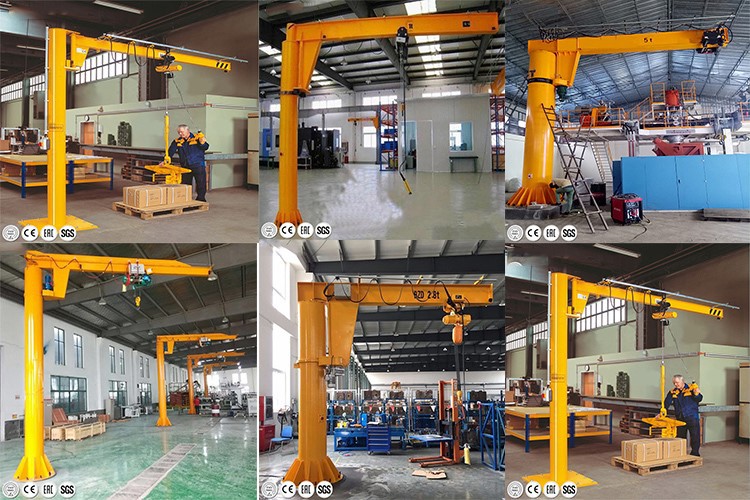

Products Application
Our 3 ton jib cranes serve a wide range of industries worldwide:
Why Choose Us?
Frequently Asked Questions
Q：How much does a 3 ton jib crane cost?
A：Final pricing is determined by boom length, lifting height, rotating structure and customized requirements. Submit your actual demands to get an accurate quotation, our team will respond within 24 hours.
Q：What is the production lead time?
A：Standard crane units can be delivered within six weeks. Custom tailored products take approximately eight weeks. Accelerated manufacturing service is accessible for time-sensitive projects.
Q：Is the 3 ton jib crane applicable for outdoor operation?
A：The crane can work steadily in outdoor environments. Hot-dip galvanizing or marine epoxy coating is recommended to enhance anti-corrosion performance. Wind load factors are fully calculated and integrated into structural design.
Q：What about the product warranty?
A：All jib cranes from Kino Cranes carry a 12-month warranty valid from formal commissioning. The warranty covers defects arising from raw materials and manufacturing process, excluding vulnerable wearing parts such as wire ropes and brake pads.
Q：Are installation services available?
A：Complete installation documents and remote video technical guidance are provided for every order. On-site installation support is offered in designated areas. You may consult us to confirm service availability locally.
Q：Is relocation possible for floor mounted jib cranes?
A：Relocation is feasible for models equipped with detachable base plates. A new firm foundation needs construction at the new working site. Portable type jib crane is more suitable if frequent position adjustment is needed.
Q：What type of hoist is equipped with 3 ton jib crane?
A：Electric wire rope hoists and electric chain hoists are the mainstream matching configurations. Selection depends on practical lifting height and actual working duty. European standard wire rope hoists can be equipped to meet heavy duty working scenarios.
Hot Tags: 3 ton jib crane, China 3 ton jib crane manufacturers, suppliers, factory, 5 Ton Jib Crane, Jib Crane By Capacity
Previous
10 Ton Jib CraneNext

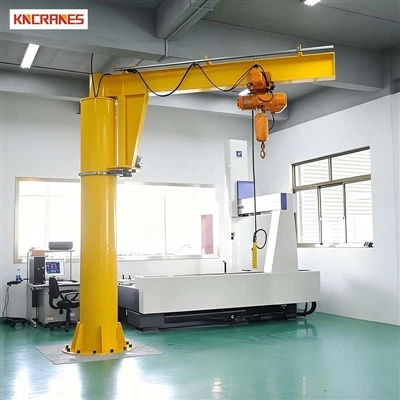

2 Ton Jib CraneYou Might Also Like
