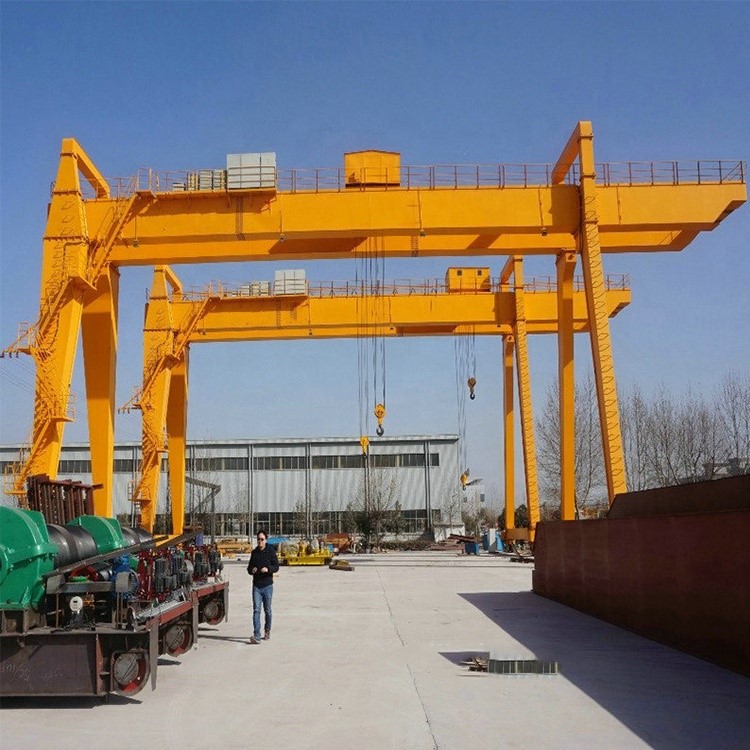

100 Ton Gantry Crane

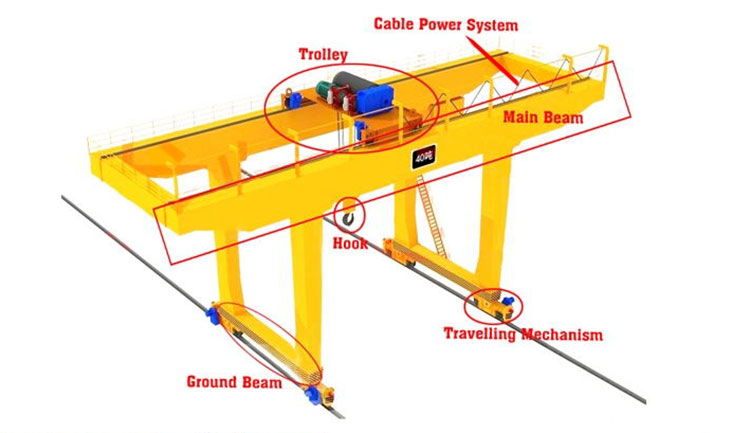

100 ton gantry crane consists of four main parts, namely, the bridge structure, the crane traveling mechanism, the trolley and the electric equipment. All movements of the crane are controlled in the operating room. This type of double beam gantry crane has two conductive forms, cable and sliding contact line.



It is of advanced technology, whose design is based on international standard: FEM (Europe), DIN (Germany), ISO(International), equipped with many advantages such as: strong rigidity, light dead weight, low power, outstanding structure design etc. The configurations are very advanced, such as Schneider electricals, ABM/Nord / SEW triple gear motor (three in one: motor, gear box,brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch, and so on.

Lifting Capacity			T	16/3.2	20/5.0	32/8.0	50/10.0	75/20.0
Span			M	18-35
Max. Lifting Height		Main hook	M	10/12
		Aux hook		10.6-12.6	10.6-12.6	10.7-12.7	11.1-13.1	11.1-13.1
Working System				A5
Speed	Hoisting	Main	m/min	15.3	15	13.2	5.9	6.25
		Aux		22	19	17	13.2	9.28
	Trolley Travelling			44.7	44.7	38.6	36	38.9
	Crane Travelling			30-35	34.5-32.9	52.53	45-38.6	38.5-32.6
Weight	Trolley		t	7.1	8.1	11.7	16.8	29.4
	Total Weight			92-142	105-148	92-142	111-156	189-245
Max. Wheel Load				275-369	341-435	275-369	392-483	314-361
