4 Ton Gantry Crane

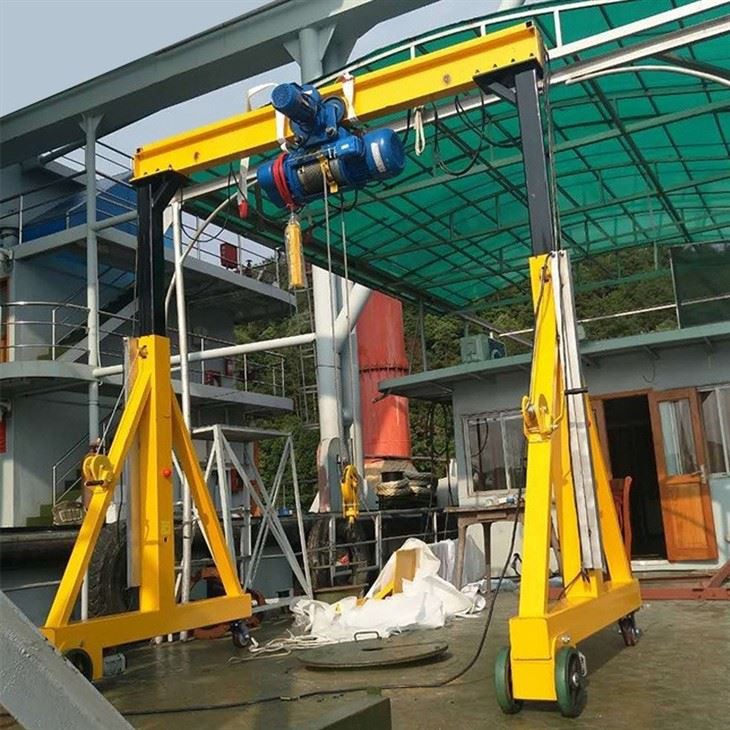

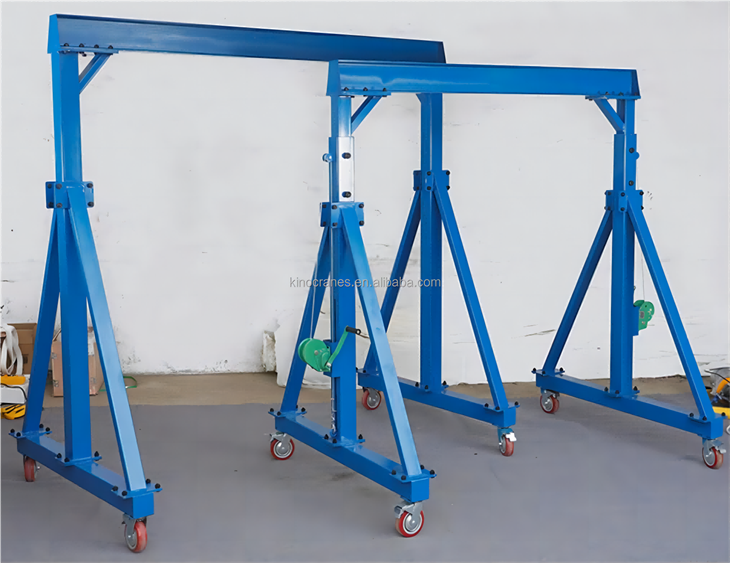

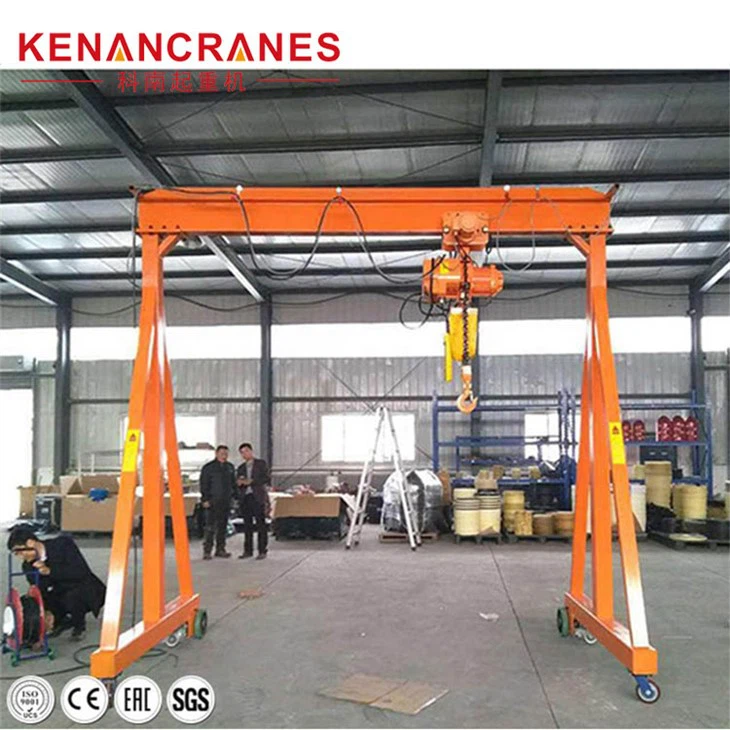

Portable Gantry Crane is a small-sized lifting equipment , which is composed of Main Girder, Support Legs, Motorized Wheels(optional) and Hoist etc. It is designed for everyday use and are often used in the production, installation and maintenance of equipment requiring portability. Adjustable height gantry cranes are a very economical crane for lifting materials in any field within a facility. It is extensively used in manufacturing industry, storage warehouse etc.indoor and outdoor. The span and height are adjustable by customized, the lifting capacity range is between 0.5 ton to 20 ton. For areas that are lifted infrequently, this height-adjustable crane can be more cost-effective than expensive permanent structures.



Loading capacity	0.5 ~ 20t
Lifting height	3 ~ 10 m
Travel speed	0 ~ 8m/min or customized stepless control
Span	3 ~ 15 m
Lifting mechanism	Electric chain hoist
Working class	M3
Working temperature	-20 ~ 40 ℃ or as require
Power supply	AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage	DC -36 / 48V
Motor protection class	IP54, IP55 or up to IP65
Control way	Wireless remote, pendant push button.
Rotation angle	360 degrees
Application area	Factory,workshop,warehouse,shipping yard, goods yard,etc.
Painting color	Yellow,red or customized



1. The working height can be flexibly set according to the working environment, and the height can also be adjusted when loading.



2. Standard modular design makes installation and adjustment easier.



3. It can be installed and used on any flat ground.

4. Wide applicability, applicable to various material handling environments.

5. Easy installation, reduced installation time and cost, and high cost performance.
