30 Ton Gantry Crane
I. Product Profile
MH gantry crane with electric hoist is small-medium type lifting equipment whichruns at rail, It is mainly composed of gantry frame ( girder, leg , ground cross beam, etc.),hoisting mechanism and electric control part. the electric hoist is hoisting mechanism; it runsalong the lower flange of the I-steel of the girder. The gantry frane includes box-shape structure. Box shaping and easy fabrication, with light trussed frame and strong in wind resistance. light dead weight, simple structure and easy installation and maintenance, so it is applicable to outdoor operational sites of small-medium lifting load for general handing such as factories and mine, fright yards and warehouse. It is prohibited to operate in the enviroment with inflammable , explosive and corrosive gas. It has three opretion modes: ground pendant with press button, wireless remote control and cabin control.
II. Specification
|
Model NO |
MH |
|
Condition |
New |
|
Type |
Single Girder |
|
Span |
up to 30 M |
|
Lifting Height |
6/9m customzied |
|
Load Capacity |
3-32 Ton |
|
Lifting speed |
8 0.8/8m/min customzied |
|
Travelling Speed |
20/30/45 m/min customzied |
|
Working Class |
A3-A5 |
|
Origin |
Henan, China |
|
Way to Control |
Pendant Push Button/Wireless Remote Controller |
|
Trademark |
KENAN CRANES |
|
Specification |
CE, ISO |
|
HS Code |
8426112000 |

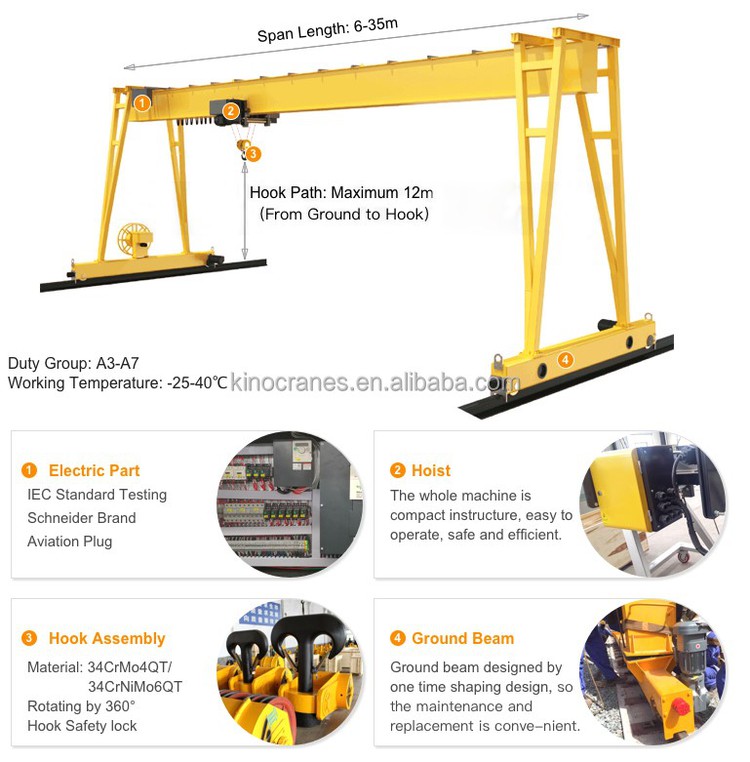

III. Detailed Images
IV. Features
| Advantage | |
| 1 | Reasonable structure |
| 2 | Favorable performance |
| 3 | Smooth starting and stopping |
| 4 | Safe and reliable traveling |
| 5 | Low noise, commodious cabin and good view |
| 6 | Convenient maintenance, excellent exchangeability for parts and computers |
| 7 | Saves electricity specifications |
|
Safety |
|
| 1 | Overload protection |
| 2 | Main lifting motor with thermal protection |
| 3 | Hooks with latch |
| 4 | Rubber buffers |
| 5 | Protective earthing |
| 6 | Crane switch and travel end switch |
| 7 | Emergency switch can stop all movement when dangerous happened |
| 8 | Sub-assemblies characteristic are tested before assembly |
| 9 |
All cranes must be preassembled and tested before leaving factory and offer the certification of test |

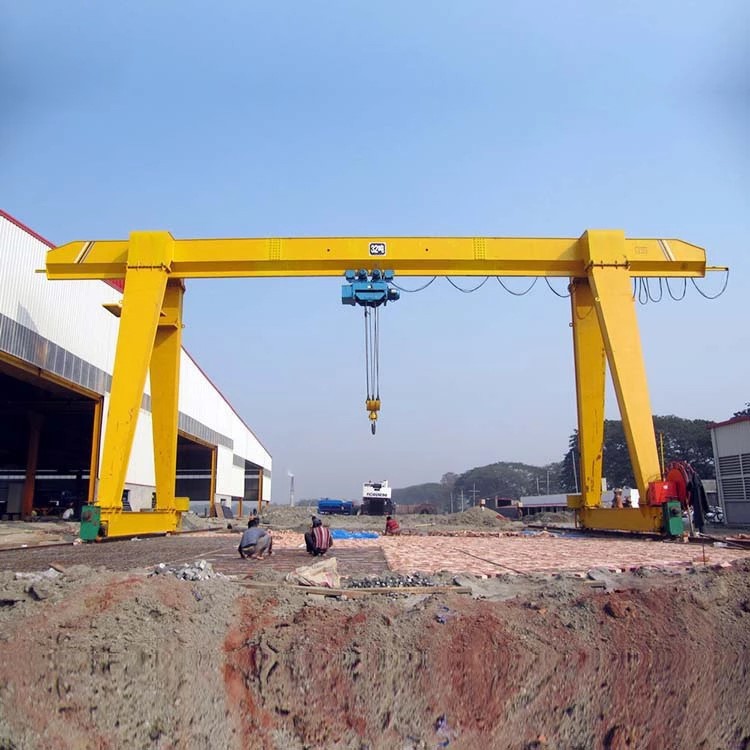

V. Application Scenarios
