Electric Jib Crane
Overview

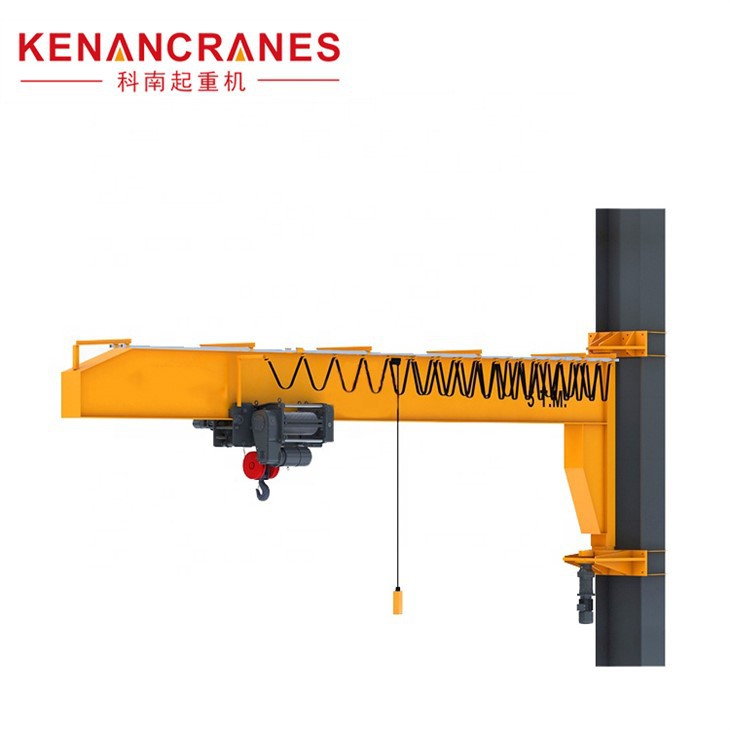

A wall-mounted jib crane, also known as a wall-mounted swing jib crane or wall-mounted cantilever crane, is a type of lifting equipment designed to provide a lifting solution in a limited space. It is mounted on a wall or vertical surface, allowing it to extend horizontally and rotate around a vertical axis.
The wall-mounted jib crane typically consists of the following components:
1. Wall Bracket: The wall bracket is securely attached to a wall or vertical surface. It provides the support and stability for the jib crane.
2. Jib Arm: The jib arm extends horizontally from the wall bracket and rotates around a vertical axis. It is the primary component that supports the lifting mechanism and allows for the movement of loads.
3. Lifting Mechanism: The lifting mechanism, which can be a hoist, electric chain hoist, or electric wire rope hoist, is attached to the jib arm. It provides the lifting and lowering function to move loads vertically.
4. Rotation Mechanism: The jib arm is equipped with a rotation mechanism that allows it to rotate180 degrees or even a full360 degrees around the vertical axis. This rotation provides flexibility and coverage in the working area.
5. Control System: The wall-mounted jib crane may have a control panel or pendant that allows the operator to control the lifting, lowering, and rotation of the crane. The control system can be manual or powered, depending on the specific requirements and configuration of the crane.
Products Parameter
|
Technical Parameter |
|||||||||
|
Type |
BZ0.25 |
BZ0.5 |
BZ1 |
BZ2 |
BZ3 |
BZ5 |
BZ8 |
BZ10 |
|
|
Lift Capacity (t) |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
8 |
10 |
|
|
Max. Lift Height(m) |
3 |
3 |
3 |
3 |
4 |
4 |
6 |
8 |
|
|
Slew Angle(0) |
360 |
360 |
360 |
360 |
360 |
360 |
360 |
360 |
|
|
Lift Speed (m/min) |
Normal |
4;10;8 |
5;10;8 |
8 |
8 |
8 |
8 |
8 |
8 |
|
Slow |
1;2.5;0.8 |
1.25;2.5 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
Level Travel Speed (m/min) |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
|
Slewing Speed (r/min) |
0.7 |
0.7 |
0.7 |
0.7 |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Lift mechanism |
wire rope electric hoist or chain electric hoist |
||||||||
|
Power supply |
220~6900V,50/60HZ,3phase or customized |
||||||||
|
Control mode |
Pendent pushbutton control or remote control |
||||||||
|
Above parameter just for your reference,jib crane can be customized design Max.20t according to your demands. |
|||||||||
Features
|
Hoist Mechanism |
ABM/SEW Brand, Heavy duty motor, 60%ED rating |
|
Hardened gear, silent running, totally enclosed, semi-fluid grease, maintenance free |
|
|
Electromagnetic disk brake, adjust-free for brake lining, dust proof |
|
|
Cross Travelling Mechanism |
Stepless travelling, integrated motor + brake + gear box |
|
Hook |
Swirling type, DIN 34CrMo hook, Class T |
|
Safety Monitor System |
Hoist safe working period counter(SWP%), Lifting running time counter, Overloading Counter,Overheating alarm, Motor starts counter, Brake-ware supervision, Ethernet/4G remote access |
|
Working Duty |
ISO M5/FEM 2M |
|
Level of Protection |
IP55 |
|
Insulation Grade |
Class H |
|
Industrial Voltage |
380V 50HZ 3PH AC or as required at hoist working site |
|
Control Method |
Italy GG brand pendant line button control/remote control |
