How Does an Electric Chain Hoist Work?

Electric chain hoists are usually used in factories, workshops, warehouses and other places, and they are important tools for lifting goods. Understanding the working principle of it is beneficial for us to operate the chain hoist in a safe and standardized manner. Below, we will elaborate on its components and its working principle.

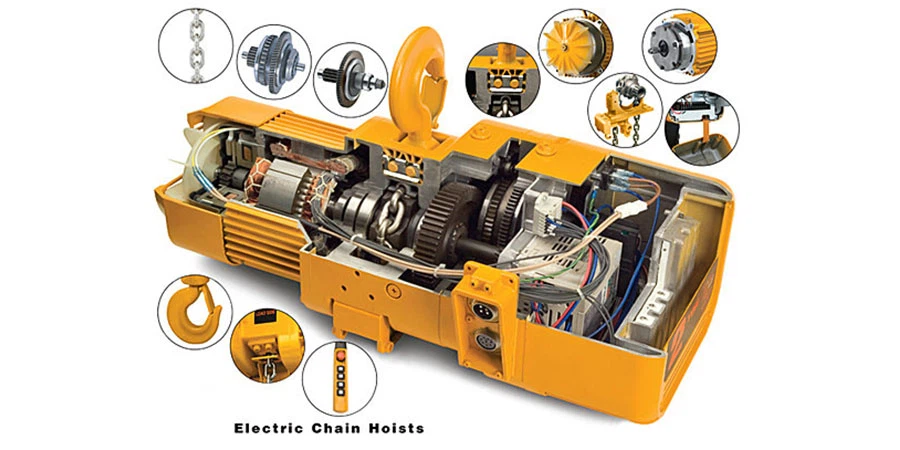

The composition of the Electric Chain Hoist is actually quite simple. It is mainly composed of the following components:

• Motor: It is the main power source and there are two options available - single-speed and double-speed.
• Lifting Chain: G80 high-strength alloy steel chain, capable of bearing a maximum weight of 32 tons.
• Gear System: Reduces the motor speed to increase torque, allowing it to precisely control the load.
• Hook: Forged alloy steel hook, equipped with a safety lock to secure the load, and customizable rotating hook.
• Remote Control: Allows it to control the lifting, lowering and moving actions.

Of course, in addition to this, we can also provide customization services, such as overload protection, limit switches and thermal protection and other accessories.

Activating the control pendant starts up the electric hoist's motor, which drives the gear system to spin the lifting chain drum. The chain winds onto the drum to lift the load, or unwinds to lower it. Braking systems-such as electromagnetic brakes-lock the hoist instantly if power is cut, preventing accidents. Take the JTHH series for example: it offers lifting speeds of 2–8 m/min, and is available in standard or low-headroom designs to fit different workspace constraints.

Operators control electric chain hoists using pendant stations or wireless remotes. Key functions include:

• Variable Speeds: Dual-speed motors enable precise adjustments for delicate loads.
• Limit Switches: Automatically stop the hoist at preset heights to avoid overtravel.
• Voltage Safety: Low-voltage control circuits (24V/48V) enhance operator safety.

Advanced models integrate with overhead crane systems for seamless horizontal movement, expanding their utility in large facilities.

An electric chain hoist's all parts, from motor to lifting chain, ensure safe and efficient lifting. These hoists are powerful and precise, working well on factory floors and construction sites. Choose a hoist by its load capacity, lifting speed and safety features to fit your needs.
