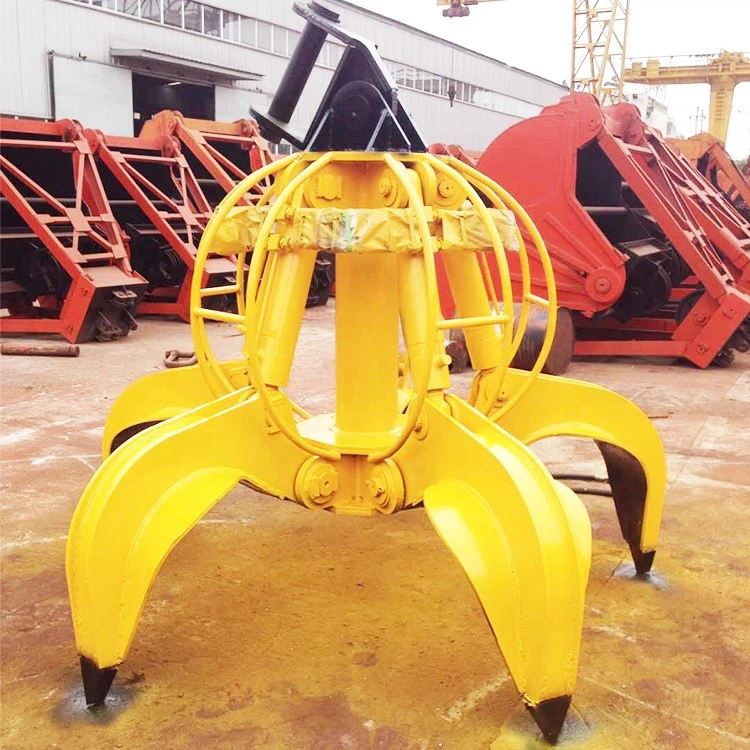

Hydraulic Orange Peel Grab
Product Description
The hydraulic orange peel grab is a type of hydraulic grab used for handling bulk materials such as scrap metal, industrial waste, rocks, and other irregularly shaped materials. The grab is operated by a hydraulic system, allowing for precise control and efficient handling of various types of materials. It is commonly used in industries such as recycling, construction, and marine cargo handling for loading and unloading materials from ships, trucks, and other transport vehicles. The grab's design allows it to effectively handle materials that may be difficult to grasp with traditional grabs or buckets due to their irregular shapes or sizes. The hydraulic orange peel grab offers versatility, strength, and reliability in material handling applications, making it a valuable tool in various industrial settings.
Product Detailed
Technical Data
| Load | 5t | 10t | 16t | |||||||
| Density (t/m3) | 0.8-1.0 | 1.5 | 2.5-3.0 | 0.8-1.0 | 1.5 | 2.2-2.8 | 0.8-1.0 | 1.5 | 2.2-2.8 | |
| Bucket Capacity(m3) | 3 | 1.5 | 1 | 5.8 | 4 | 2.5 | 11 | 6.5 | 4.3 | |
| Weight(kg) | 2200 | 2200 | 2000 | 4200 | 4000 | 3750 | 6200 | 6100 | 5300 | |
| Sheave Diameter(mm) | Ф400 | Ф400 | Ф400 | Ф560 | Ф560 | Ф630 | Ф630 | Ф630 | Ф710 | |
| Rate | 3 or 4 | 3 or 4 | 4 or 5 | 3 or 4 | 3 or 4 | 4 or 5 | 3 or 4 | 4 or 5 | 4 or 5 | |
| Closed Rope Diameter | Ф18-20 | Ф18-20 | Ф18-20 | Ф28 | Ф28 | Ф28 | Ф32 | Ф32 | Ф32 | |
| Dimensions | A | 2100 | 1830 | 1680 | 2800 | 2600 | 2300 | 3000 | 2800 | 2550 |
| B | 2800 | 2240 | 2050 | 3650 | 3500 | 2900 | 4300 | 4100 | 3390 | |
| C | 2700 | 2350 | 2190 | 3890 | 3800 | 3450 | 4000 | 4000 | 3600 | |
| D | 3000 | 2670 | 2500 | 4400 | 4300 | 3950 | 4500 | 4500 | 4100 | |
| E | 2000 | 1450 | 1200 | 2150 | 2000 | 1600 | 3000 | 2800 | 2180 | |
Application Scenarios
Packing
