Steel Billet Lifting Magnet
Product Description
The billet lifting magnet is a lifting device used to lift and carry unrolled steel billets. It uses powerful magnets to lift and move the billet, usually activated by current, to generate a strong magnetic field, thereby achieving the lifting operation of the billet. This equipment plays an important role in steel plants and metal processing industries, improving lifting efficiency and streamlining operations.

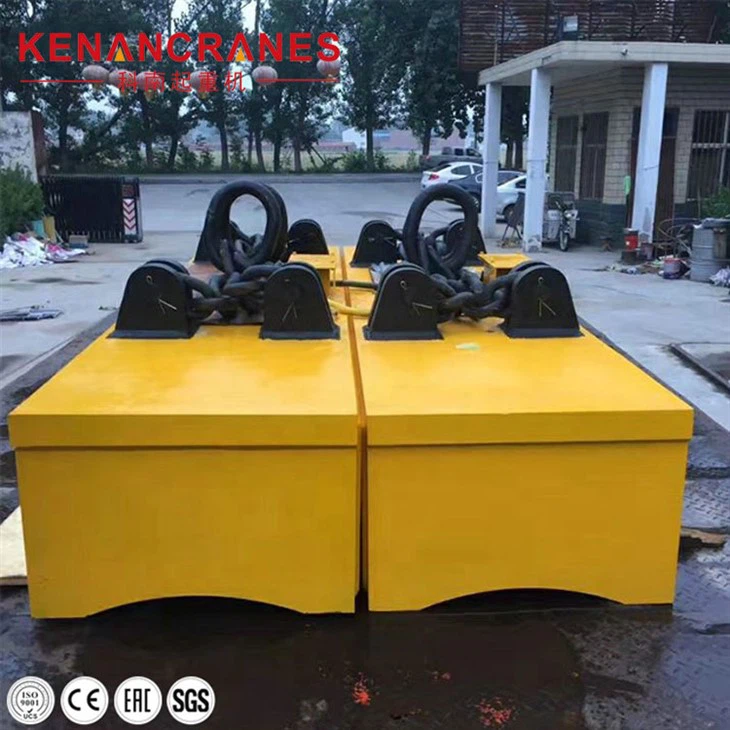

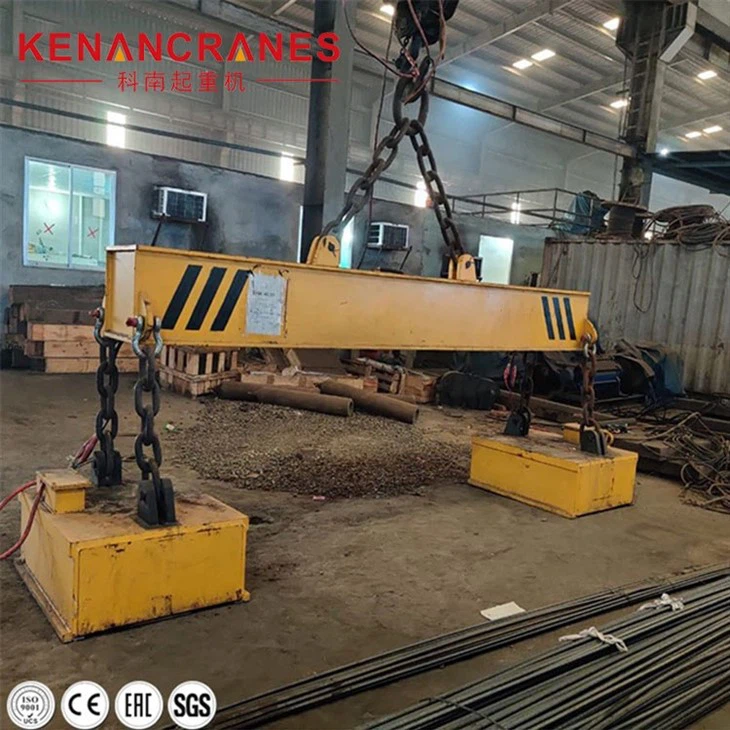

Magnet Display
Specification
|
Items |
Rectangle steel scrap magnet |
||
|
Model |
MW22-14060L/2 |
||
|
Weight (kg) |
1500Kg/piece magnet |
||
|
Nominal power |
7.7kw |
||
|
Power-on sustaining rate |
75% |
||
|
Capacity(cold/hot state) |
Steel Billet |
4pcs |
|
|
Commutating Control Equipment |
STML-4E-C |
||
|
Control Mode |
Contactor |
||
|
Rated Voltage |
DC-220 |
||
|
Power |
380V 50HZ 3P AC |
||
|
Isolation grade |
H Class |
||
|
Rated Temperature |
600 degree resistant |
||
Product Features
1. The power-on duration is 75% and the operating frequency is high, which can significantly improve work efficiency and loading and unloading operation speed compared with standard series products.
2. Using strong excitation method (DC-290V/DC-220V) can improve the lifting capacity.
3. Large lifting electromagnets can also use overexcitation methods (DC-350V/DC-290V/DC-220V), which can speed up the current rise and exert stronger lifting capabilities.
Application Scenarios
Packaging
