Single Rope Grab Bucket
video

Single Rope Grab Bucket

The single rope grab bucket is a type of bucket used for material handling in various industrial applications. It operates using a single rope or cable and is commonly found in tower cranes, gantry cranes, and ship's gear cranes. Its hinged clamshell-like structure allows for efficient opening and closing, enabling the bucket to capture and hold bulk materials such as logs, ore, and loose materials.
Send Inquiry
Chat Now
Product Introduction



Product Description



Single Rope Grab Bucket



The single rope grab bucket is a type of bucket used for material handling in various industrial applications. It operates using a single rope or cable and is commonly found in tower cranes, gantry cranes, and ship's gear cranes. Its hinged clamshell-like structure allows for efficient opening and closing, enabling the bucket to capture and hold bulk materials such as logs, ore, and loose materials. When the rope is tensioned, the bucket closes to secure the material, and when the tension is released, the bucket opens for material discharge. It is a versatile tool widely utilized in construction, mining, and maritime industries for efficient bulk material handling.



Specification

clamshell grab bucket

Model

Volume(m³)

Rate of material

t/m³

Dia of Pulley

Dia of steel rope

open and close time(sec)

Usage crane capacity

U1

1

>1.8-2.9

φ350

φ14-16

11

5

U2

1.5

>1.0-1.8

φ350

φ14-16

12.5

5

U3

2.5

>0.5-1.0

φ350

φ14-16

8

5

U4

2

>1.8-2.9

φ500

φ18-20

15

10

U5

3

>1.0-1.8

φ500

φ18-20

15

10

U6

5

>0.5-1

φ500

φ18-20

10

10

U7

3

>1.8-2.9

φ610

φ21.5

15.3

10



Characteristic



SINGLE ROPE GRAB BUCKET

1. Carefully Select Materials
Made of steel with higher hardness, the product has a long service life.


2. Multiple Classifications
Choose according to different working environments: fully closed valve shell, semi-closed valve shell, wide-side valve shell and narrow-side valve shell.


3. Good Grip
The remote control controls the opening and closing of the grab bucket. The remote control grab can control the pause when the grab bucket is opened to any size.


4. Wide Range of Uses
It is suitable for scrap steel grabbing and sorting work in steel plants, bulk waste, waste sorting, loading, unloading and handling work in treatment plants and construction sites.



Product Display

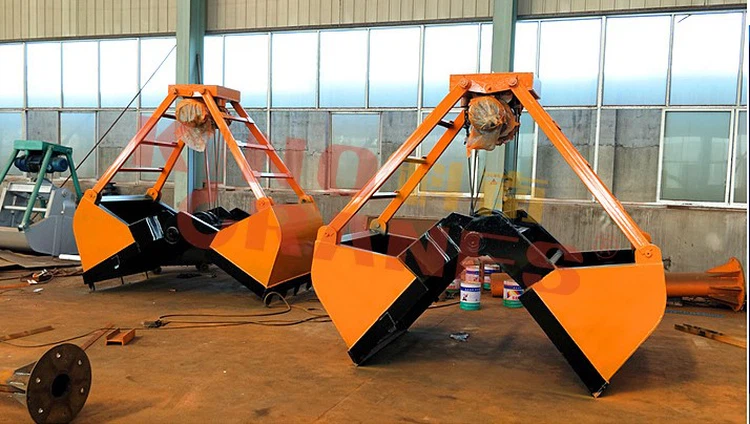

single rope grab bucket

single rope grab bucket

single rope grab bucket



Application Scenarios

grab application



application



Packing

clamshell bucket packing

About Company

company main product

company profile

CE1
