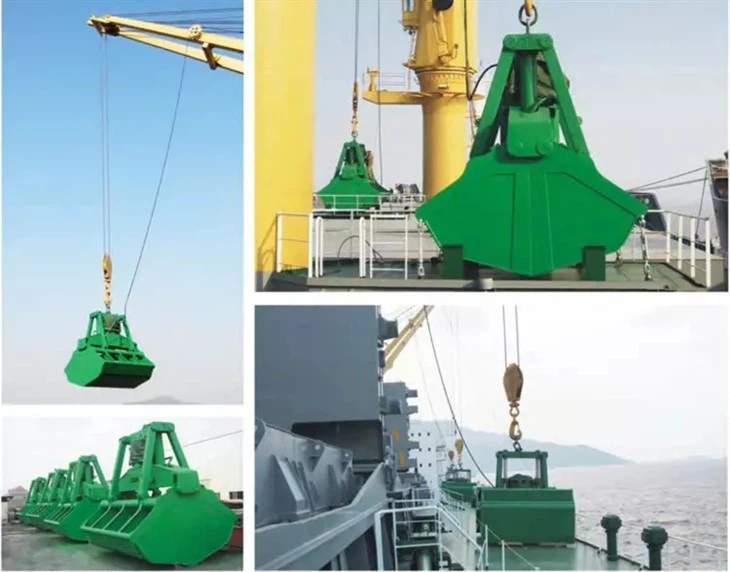

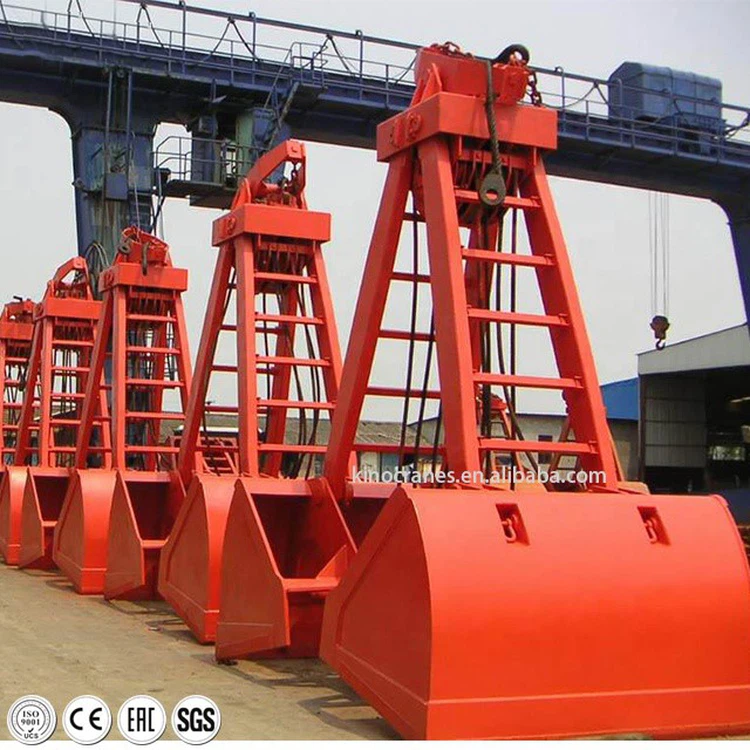

Hydraulic Clamshell Grab Bucket
Product Description
A hydraulic clamshell grab bucket is a specialized piece of equipment used for material handling and excavation tasks. It is designed to be attached to cranes, hydraulic excavators, or material handlers for various applications. The bucket features two hinged half-shells that can be opened and closed hydraulically to grab and lift materials such as sand, gravel, and other loose materials. This type of bucket is commonly used in construction, marine, and industrial settings for tasks such as dredging, excavation, and bulk material handling.
The hydraulic operation allows for precise control over the opening and closing of the bucket, making it suitable for applications that require accurate material placement or sorting. The design of the bucket enables it to efficiently gather loose materials from the ground or from a pile, making it a versatile tool for a range of material handling and excavation tasks. The hydraulic clamshell grab bucket is available in various sizes and configurations to suit different equipment and application requirements. It offers an effective solution for tasks that involve the handling of loose materials in construction, marine, and industrial operations.

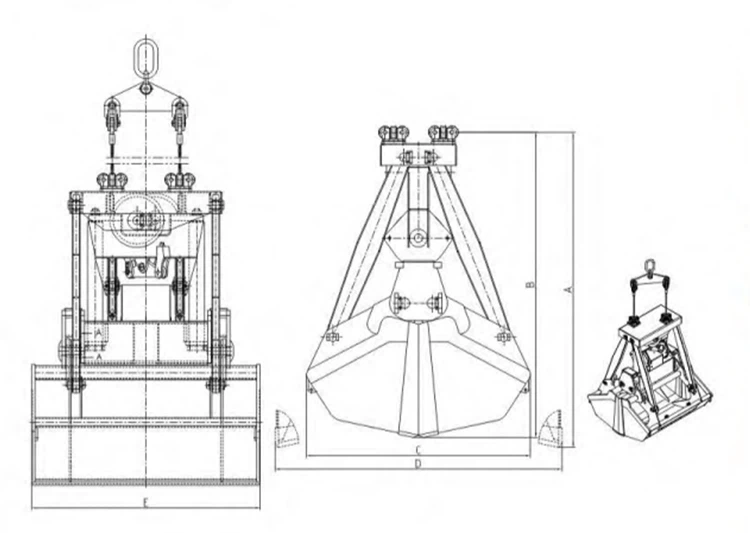

Specification
|
Grab Bucket Parameter |
|||||
|
Model |
|
LD1 |
LD2 |
LD3 |
LD4 |
|
Volume |
M3 |
0.5 |
1 |
1.5 |
0.75 |
|
Type |
|
Heavy |
Heavy |
Medium |
Heavy |
|
Proportion of materials |
t/m3 |
1.2 |
1.6-2 |
1.7-1.8 |
1.2 |
|
Capturing the materials |
t |
1.3 |
1.3-1.73 |
2.1-2.3 |
1.3 |
|
Percentage of pulley |
|
4 |
4 |
4 |
4 |
|
The diameter of steel wires |
mm |
9.2 |
19 |
19.5 |
9.2 |
|
The diameter of pulley |
mm |
250 |
260 |
260 |
250 |
|
Tons of the match hoist crane |
t |
3 |
5 |
5 |
3 |
|
Self-weight of grab |
t |
0.93 |
2.35 |
3.1 |
1.53 |
|
Total height of grab |
mm |
1860 |
1941 |
2720 |
2250 |
|
Notes |
Design as customer's demand |
|
|||
|
Above information just for reference, detail parameter based on different lifting weight. |
|||||

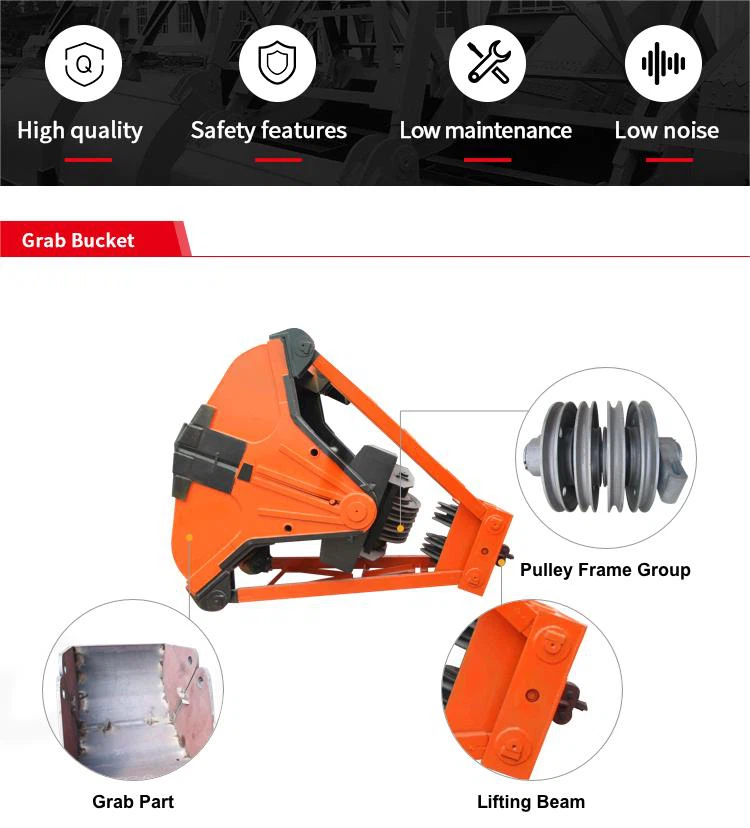

Characteristic
1) Simple structure ,easy in installation and maintain.
2) Adopting advanced world famous brand components in electric parts and operation parts.
3) with the great abrasive resistance, high strength and can grab the material very well.
4) Running in a high authorization and internationalization,no pollution
5) Widely used in Wharf, steel mills, power plants, ships, etc.
