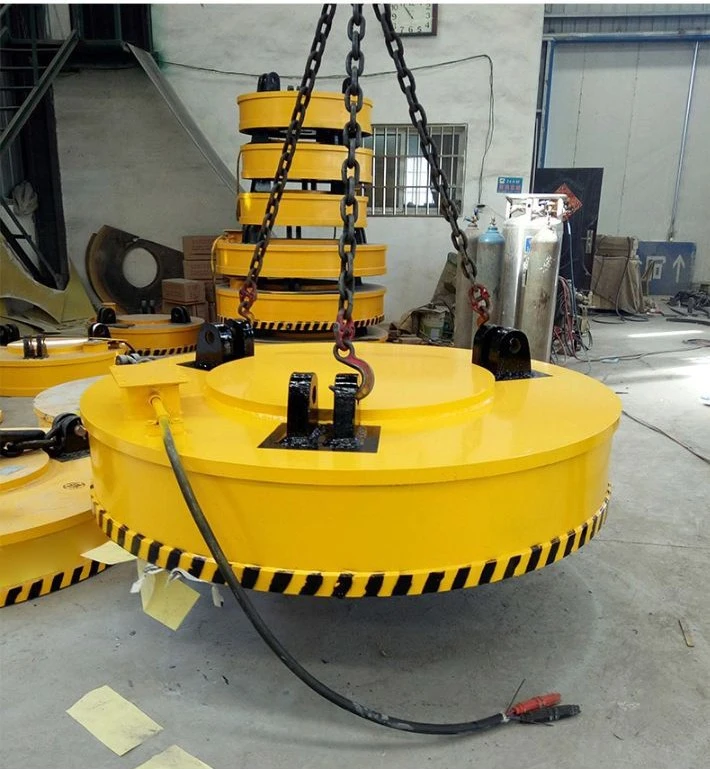

10 Ton Lifting Magnet
Product Description
Circular Lifting Magnet can handle tones of scrap continuously throughout the day. It is used in metalworking plants to hoist and transport steel parts, forgings, casting, plates, booms, channels, angles, rods and bars. They save time and effort because they can lift steel more quickly and conveniently than any other mechanical device. Lifting circular electromagnet can absorb steel scrap and crumb in room temperature or high temperature environment,it is widely used in many industries, like steel mills, foundries and so on.
Product Detailed
1. Electric Remote Control
It can be divided into wired and wireless,with simple control,labor saving and power saving,safe andreliable,and can be controlled remotely.
2.Cable Reel
High quality thickened steel plate,high safety factor,long service life.
3.Cable
New PVC,environmental protection materialsheath is thickened,oxygen free copper core,anti oxidation,low resistance.
4.Electrical Control Cabinet
Two specifications,the contactor is easy toreplace,the delay switch can automaticallycut off the power to prevent the operator fromforgetting to cut off the power and protect theelectromagnetic sucker from burning
Technical Data
| Model | Diameter | Current | Power (kW) | Lifting capacity (cold/hot state) (kgs) | ||
| (mm) | (A) | Steel ball | Steel ingot | Steel scrap | ||
| MW5-70L/1 | 700 | 15 | 3.3 | 2500 | 380/200 | 120/100 |
| MW5-80L/1 | 800 | 18 | 3.96 | 3000 | 480/250 | 150/130 |
| MW5-90L/1 | 900 | 26.6 | 5.85 | 4500 | 600/400 | 250/200 |
| MW5-110L/1 | 1100 | 35 | 7.7 | 6500 | 1000/800 | 450/400 |
| MW5-120L/1 | 1200 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 |
| MW5-130L/1 | 1300 | 54 | 11.9 | 8500 | 1400/1100 | 700/600 |
| MW5-150L/1 | 1500 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 |
| MW5-165L/1 | 1650 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 |
| MW5-180L/1 | 1800 | 102.4 | 22.5 | 14500 | 2750/2100 | 1600/1350 |
| MW5-210L/1 | 2100 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 |
| MW5-240L/1 | 2400 | 154 | 33.9 | 26000 | 4800/3800 | 2850/2250 |
Advantages
1. The electromagnet is sealed up, with good moisture and dust proofing.
2. Structure of magnet is reasonably designed and optimized, features light weight, strong attraction force and low energy consumption.
3. Energizing coils to generate magnetic strength is processed with special technology, to improve its electrical and mechanical property. Insulation Grade of coils is F to H for longer service life.
4. The energizing ratio is increased from 50% to 60% or 75%, with higher effectiveness.
5. With special heat-protection method, materials up to 700 degree centigrade can be handled by the lifting magnet.
6. Considerate design for easy and convenient installation, operation and maintenance.
7. Complete scope of supply, including control panels, cable, cable reels, lifting chains, beams and battery sets.
Application Scenarios
Packing
