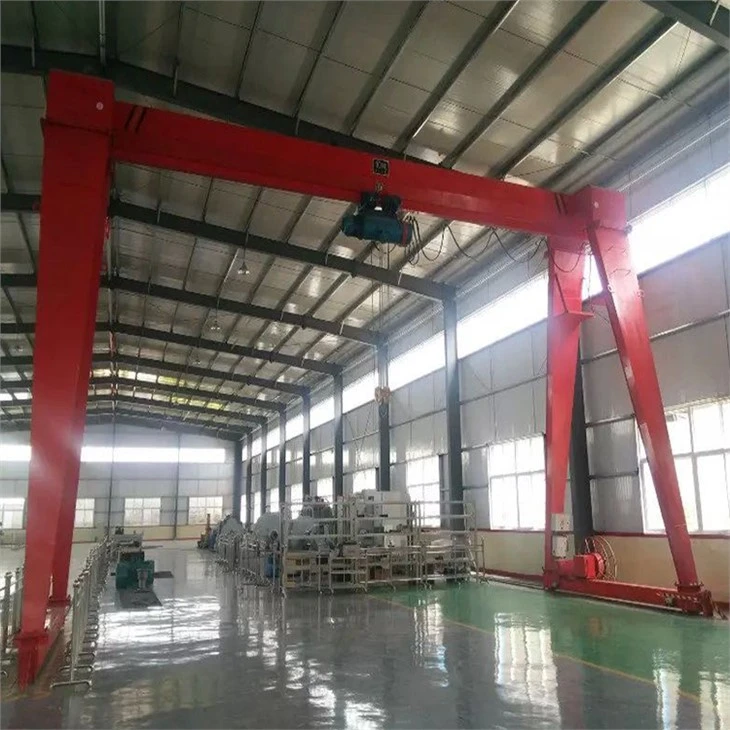

5 Ton Gantry Crane

L TYPE GANTRY CRANE
1. 5 Ton Goliath Crane is mainly composed of gantry frame, lifting trolley, long crane travelling mechanism, cab and electric control system.
The gantry crane is in box-shape structure. The trolley adopts vertical reaction wheel when the lifting load is below 20t, and horizontal reaction wheel when the lifting load is above 20t run at the girder side. The girder is of single -girder bias truck and the leg is L-shaped, with large lifting space, L type make the lifting long piece objects cross over cantilever side from inner span easily.
The closed cab is used for operation, where there are adjustable seat, insulating mat on th floor, toughened glass the window, fire extinguisher, electric fan and auxiliary equipment such as air conditioner, acoustic alarm and interphone which can be furbished as required by users.

2. European L type single beam gantry crane assembling crane:
a.Mainly made up of bridge,trolley,crane traveling mechanism and electric system
b.Applies to the open warehouse or rail along for general handling and lifting work
c.Also can equipped with many lifting device for special work
d.Prohibited for lifting high temperature solution, flammable, explosive, corrosion, overloading dust and other dangerous operations.It is widely used in industrial and mining enterprises warehouses and other places need lifting weights.

MH TYPE GANTRY CRANE WITH ELECTRIC HOIST
MH gantry crane with electric hoist is small-medium type lifting equipment which runs at rail, it is mainly composed of gantry frame (girder, leg, ground cross beam, etc.), hoisting mechanism and electric control part. The electric hoist is hoisting mechanism; it runsalong the lower flange of the I-steel of the girder. The gantry frane includes box-shape structure. Box shaping and easy fabrication, with light trussed frame and strong in wind resistance. Light dead weight, simple structure and easy installation and maintenance, so it is applicable to outdoor operational sites of small-medium lifting load for general handing such as factories and mine, fright yards and warehouse. It is prohibited to operate in the environment with inflammable, explosive and corrosive gas
It has three opretion modes: ground pendant with press button, wireless remote control and cabin control

MB SEMI-GANTRY CRANE WITH ELECTRIC HOIST
The semi-gantry crane electric hoist crane, a type of small-medium type lifting equipment which runs along rails, mainly composed of gantry frame ( girder, leg, ground cross beam etc.), hoisting mechanism, travelling mechanism and electric control part. With the electric hoist as hoisting mechanism, it runs along the lower flange of the I-steel of the girder. The gantry frame one side equipment runs along th eground rails, no leg at the other side which runs along the upper rails of workshop. The rest stucture and configuration are the same the MH gantry crane with electric hoist.

● The rated lifting weight is 5~500 ton.
● It can be with cantilever on both side of crane.
● The working duty is heavy A5~A7 class (ISO).
● Lifting hook can be grab, magnet, and hanging-beam for special industry.
● The ambient working temperature could be -40~50 degree.
● Electrical part could be China brand and Europe brand, customers could tell us their choices.

1. Lifting mechanism is electric trolley/hoist; it can equip with hook, bucket, grab, magnetic chuck and other lifting tools!
2. Spare parts: It can equip with two hooks, one main hook and one secondary hook!
3. Beam: It is composed of bridge frame, trolley, cart operating mechanism and electric equipment.
The crane girder is produced without welding; it makes the beam much more strength!
4. Usage: It is applicable to transferring, assembling, check and repair as well as load and unload various materials!
5. Note: It is prohibited to use the equipment in the combustible, explosive or corrosives environment.
6. Operation: The operation of this crane is completed in driver's cabin, which has open type and closed type and an be installed on left or right side according to practical situation. The direction of entering the gate has two forms, sideway and ends, in order to satisfy the user's choice under different conditions.
7. Speed: There are three speeds: trolley lifting speed, trolley traveling speed, crane

1. Cut Down your cost in building of plant and workshop;
2. Improve your production efficiency;
3. Be suitable for different operating conditions and provide you One-stop Solutions;
4. Reduce daily maintenance;
5. Safety with high performance.

Lifting and travelling limit switches;
Emergency stop; Loss voltage protection; Grounded protection;
Overload protection; Short circuit protection; overheating protection;
Over speed protection; Over current protection; Faulted phase protection;

Total 24 wheels for long traveling. Increase the smoothness of the crane operation, and effectively reduce the wheel pressure.

He crab motion are driven by means of gear motors, whose motors have built-in brakes with a possibility of manual release.
The crane's crab is equipped with electrically driven anti-creep stoppers able to keep the crab idle due to the wind pressure and having a manual drive for the case of a power failure.

As one type of lifting machinery equipment, adapts to be used in the places where exist strong wind. It is widely required by the customers who come from coastal areas.
Truss crane in our group is of light dead weight, small loading capacity, and strong wind-resistant ability. With its simple structure, its construction cost is relatively low compared with ordinary box-shaped gantry crane.

10 Ton a frame truss structure gantry crane for marble is a kind of track travelling light type crane, can be used where overhead runways are not practical, or in open areas where columns cannot be accommodated. The top main girder is mounted on two A shape columns which are further resting on wheel mounted end carriages.

10 Ton a frame truss structure gantry crane for marble is widely applied to do loading and unloading work in outdoor. Such as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.
It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so on.
It is composed of beam, support legs, crane travelling mechanism, trolley, electric equipment and so on.
It could be special design and customize by clients' requirement.

10 Ton a frame truss structure gantry crane for marble consists of 5 main parts, namely, the bridge structure, A-frame support legs, the traveling mechanism, the trolley and the electric equipment. It has box type and trussed type, box type has characteristic of slim body and strong lifting capacity; trussed type has characteristic of small windward surface, small deadweight and strong lifting capacity.

The girder could also have a double girder design for heavy duty applications, where a suitable track is provided on top of the girders for travel of crab wheels.

1. Intelligent overload limiter in the hoist improves the cranes safety maximum.
2. Our polyurethane buffer is of high-class quality, durability and shock-resistance.
3. Advanced emergency shutdown system.
4. Hoisting limiter, travel limit switch of cranes promises safety work.
5. Integrative out-voltage protection and phase protection.
6. Power production capacity, professional technicians, and excellent services.
7. Strictly delivery inspection guarantees high-class quality products.
