Grab Overhead Crane
Description
Overhead crane with grab bucket is a special crane that takes grab bucket as a spreader and can finish many special works of loading and unloading bulk and granular materials, stockpiling, reshipment, and so on. Grab overhead cranes which can be divided into single girder grab overhead crane & double girder grab overhead crane.

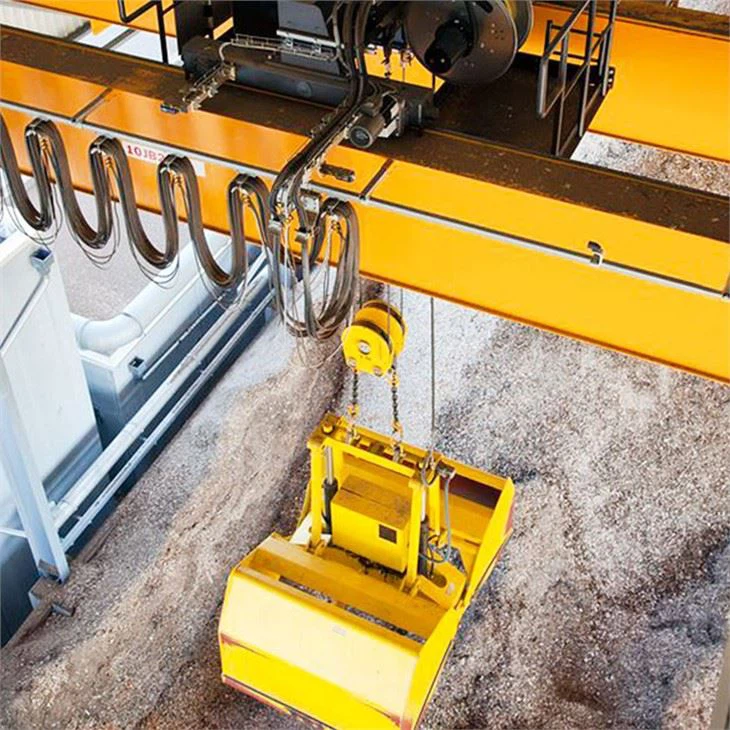

Single Girder Grab Crane is lightweight grab bridge crane supporting the use of grab trolley, divided into general type and hanging type, lifting mechanism is optional electric hoist grab. Applicable to tunnel, corridor, etc. and the places with small space, low height and limited conditions, widely used in railway stations, coal yard, warehouse, construction site, thermal power waste plant, biomass power generation coal washing, slag and many other industries.

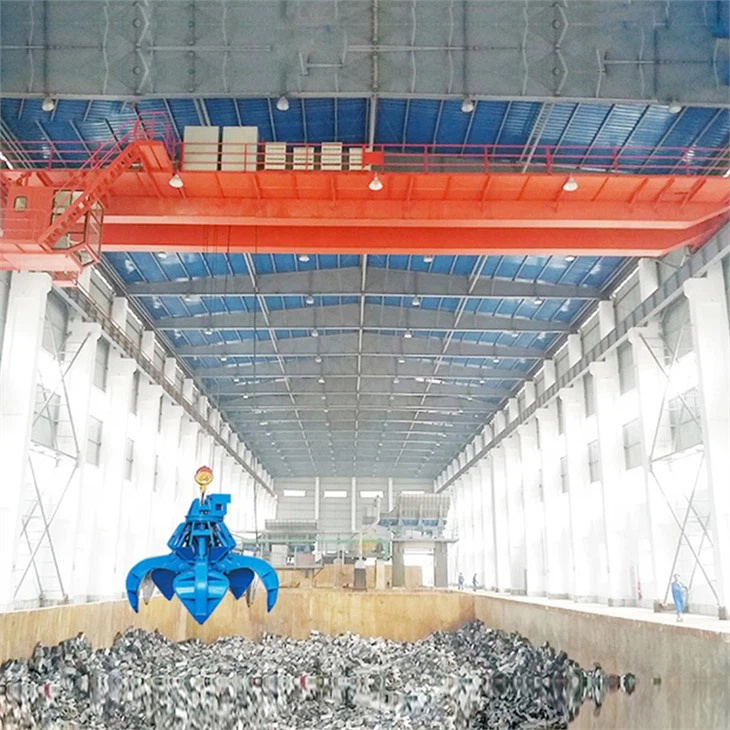

Double Girder Grab Crane is developed and evolved from double girder bridge crane, suitable for metallurgy, steel mills, brewing, building materials, chemicals, coal and other industries or outdoors across fixed span, engaged in minerals, steel scrap, wine tank, slag, coke, coal, sand and other parts or granular materials lifting and handling work. Equipped with rain-proof device during outdoor operation. It belongs to heavy duty, lifting capacity including the weight of the grab.
Parameters
|
Lifting Capacity |
t |
5-20 |
||
|
Max.Lifting Height |
m |
18-26 |
||
|
Span |
m |
10.5-31.5 |
||
|
Working System |
FEM |
M5-M7 |
||
|
Speed |
Trolley |
Hoisting |
m/min |
40.1-48.6 |
|
Travelling |
43.2-45.6 |
|||
|
Bridge travelling |
87.3-114.4 |
|||
|
Weight |
Trolley |
T |
5.2/5.9-19.3/20.4 |
|
|
Total |
Indoor |
T |
19.9-75.6 |
|
|
Outdoor |
20.7-76.8 |
|||
|
Grab |
Volume |
m 3 |
0.75-10 |
|
|
Dead weight |
kg |
2546-10123 |
||
|
Rail recommended |
43kg/m, QU70 |
|||
|
Work voltage |
380v 50hz 3phase or customized |
|||
Features
The main structure of the overhead crane consists of bridge, travelling mechanism, hoist and trolley, grab and electrical equipment. The grab overhead crane features as below:
1). Reasonable structure, strong bearing capacity
2). Low noise, soft starting and stopping
3). Safe and reliable operation
4). Commodious cabin and open view
5). Low cost maintenance, long working life
6). Strong box type, welding by machine hand.
7). Wheels are vacuum casting, medium frequency quenching
8). Wheels, wirerope drum, gears, couplings are processed by CNC manchine center, TOP quality control.
Advantages
1. Optimal-designed grab cranes are widely used for serving stores and bunkers with automatic, semiautomatic, and manual control.
2. Laser-assisted height measurement is equipped with the grab overhead crane.
3. Grab cranes can work all-around clock.
4. Safety protection devices such as limit switches for lift and CT are equipped for safe lifting and traveling.
5. Overload Protection Device increases performance security.
6. Easy and convenient operation is realized by remote control of grab cranes.
7. Equipped with a double speed mechanism, Kinocranes grab cranes have a better working performance in terms of precision.
8. Low voltage protection, phase sequence protection, and emergency stop device are equipped to grab cranes.
9. Warning indicators are installed: flashing lights and warning sound.
Application
Grab crane is widely used in power station, storage, smelting workshop of steel mill, port, cement plant, and waste recycling station, etc. to load and unload scattered objects. The grab crane has a high requirements on heat, dust, and aggressive environment. Kinocranes can provide you the optimal grab crane to your applications.
Package and Shipping
Export equipment is usually shipped by sea. The packing of the products is required to meet the shipping requirements.
It will ship by container or bulk vessel according to product size. The anti-corrosion conditions in the container should be good, and the effects of salt spray, rain, snow, and sunlight should be considered when the deck is naked.
The packaging should be able to withstand the accidental conditions of bumps, rolls and even drops during general loading and unloading.
If you would like to get an overhead crane for your business or project there, just contact us for more detailed information.
