Product Introduction

I. Overhead Crane Profile

overhead crane

1 Ton Overhead Traveling Crane, European standard single girder overhead cranes are strictly fabricated in accordance with DIN, FEM, ISO standards. The production and inspection process are strictly following European standard. The cranes have only one main girder with 1 or 2 electric wire ripe hoists. The duty group of this type cranes are FEM 2m , it bellongs a middle heavy duty cranes. This type single girder bridge cranes is much suitable for light industrial applications. The safety working load range is from 1ton to 32ton. According to clients actual usage, there are different single girder cranes for clients selecting.

II. Technical Sheet

Crane Capacity		3.2T	5T	10T	16T	20T
Span		7.5-28.5m	20m	20m	20m	20m
Max. Lifting Height		20m	4m	4m	4m	4m
Working Duty		ISO A5 / FEM 2M	ISO A5 / FEM 2M	ISO A5 / FEM 2M	ISO A5 / FEM 2M	ISO A5 / FEM 2M
Crane Total Power		17.65 kw	17.65 kw	17.65 kw	17.65 kw	17.65 kw
Self-weight		10500KG	10500KG	10500KG	10500KG	10500KG
Hoisting Mechanisam	Speed	5/0.8m/min	5/0.8m/min	5/0.8m/min	5/0.8m/min	5/0.8m/min
	Power	5 kw	5 kw	5 kw	5 kw	5 kw
	Duty	60%ED rating	60%ED rating	60%ED rating	60%ED rating	60%ED rating
Cross Travel Mechanism	Speed	0~20m/min	0~20m/min	0~20m/min	0~20m/min l	0~20m/min
	Power	0.65kw	0.65kw	0.65kw	0.65kw	0.65kw
	Duty	60%ED rating	60%ED rating	60%ED rating	60%ED rating	60%ED rating
Long Travel Mechanism	Speed	0~10m/min	0~10m/min	0~10m/min	0~10m/min	0~10m/min
	Power	4*2kw	4*2kw	4*2kw	4*2kw	4*2kw
	Duty	60%ED rating	60%ED rating	60%ED rating	60%ED rating	60%ED rating
Safety Monitor System		Intelligent Safety System Monitoring for Hoist running time, overloading times, over duty times, motor starts times, overheating times, lifting times, alarms when the hoist needs to maintenance or checking

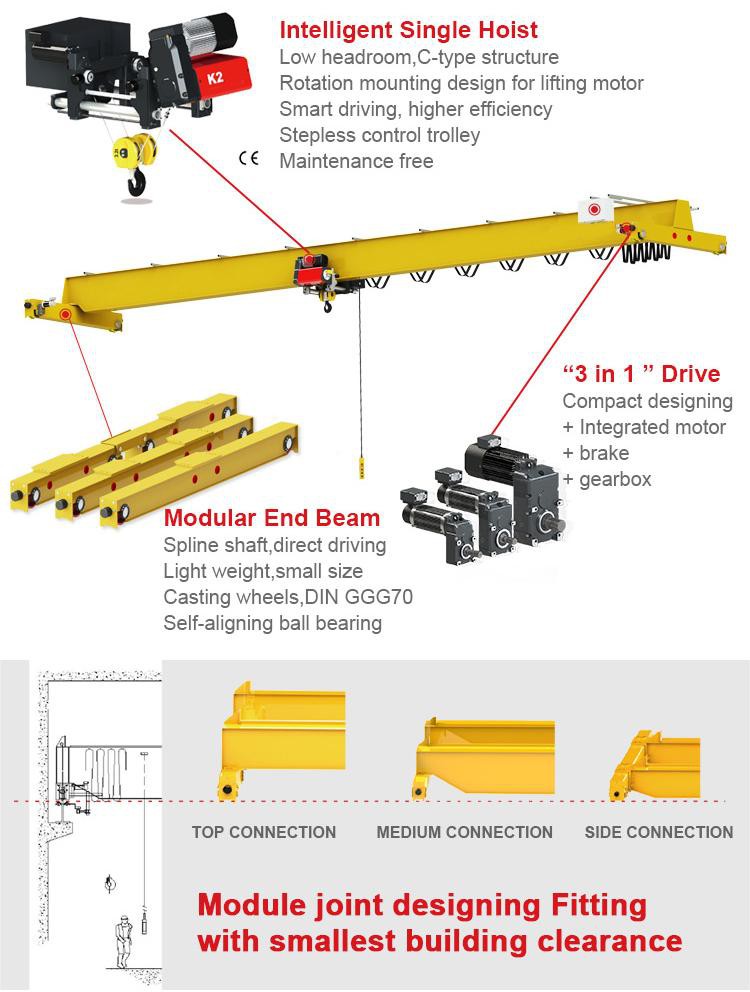

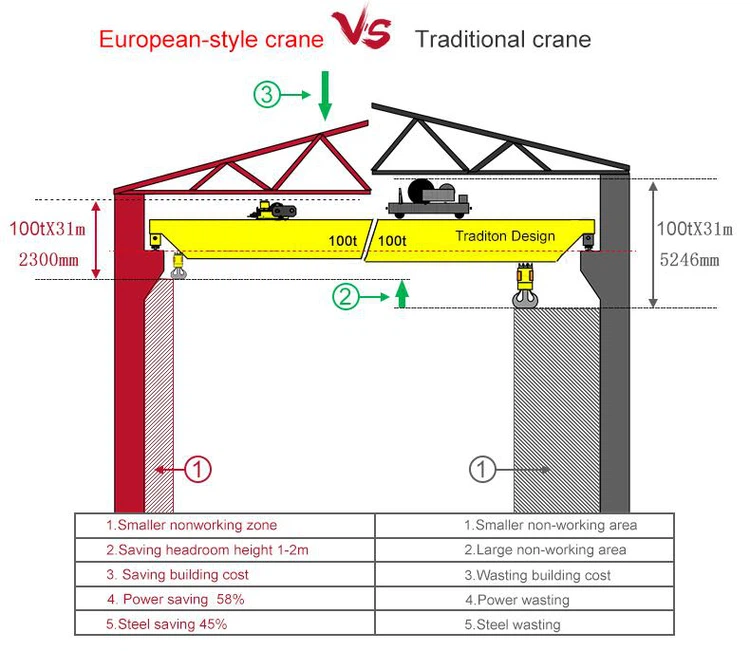

III. Overhead Crane Advantages

Overhead Crane Advantages

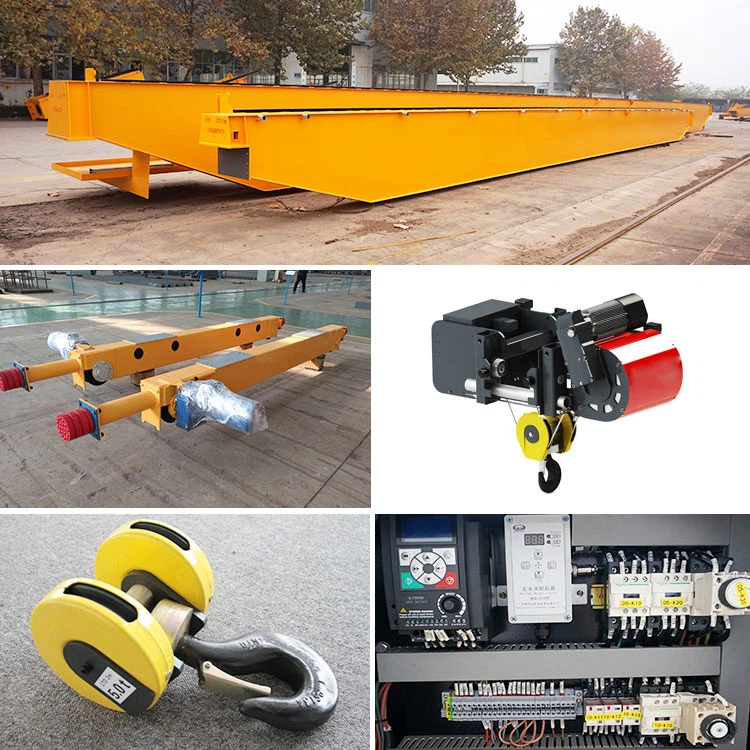

IV. Overhead Crane Parts

crane parts

Main Beam
The main beam adopts box-type structure and connects with end beams by high-strength bolt ensuring easy transportation. The professional processing equipment ensure the connection accuracy of main beam and end beam, making crane run steadily.

End Beam
End beams are the rectangular steel pipe and welding molding in a CNC machine tool positioning processing; each end beam is equipped with a double wheel rim wheel group, buffer and anti-derailment protection device.

Electric Hoist
* Maximum space using
* Precise operation
* Low maintenance cost
* Less fault downtime
* Minimum hook limit space &distance

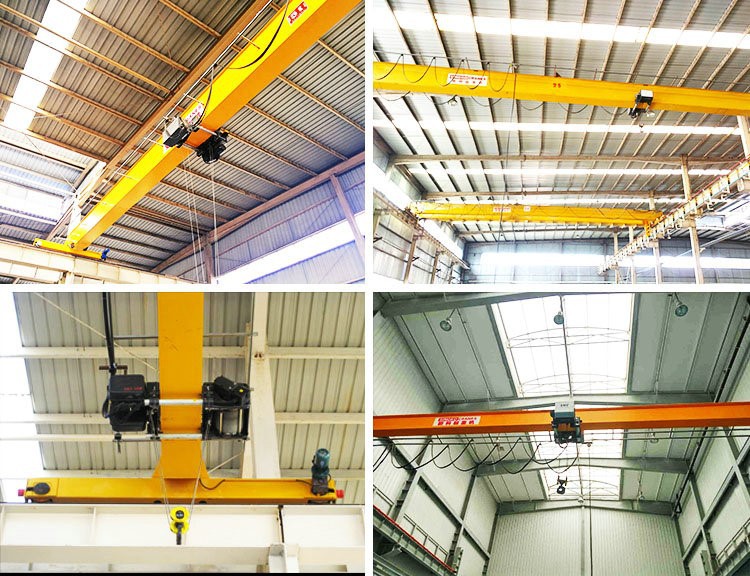

V. Application Scenarios

application
