Mini Electric Hoist

Product Overview

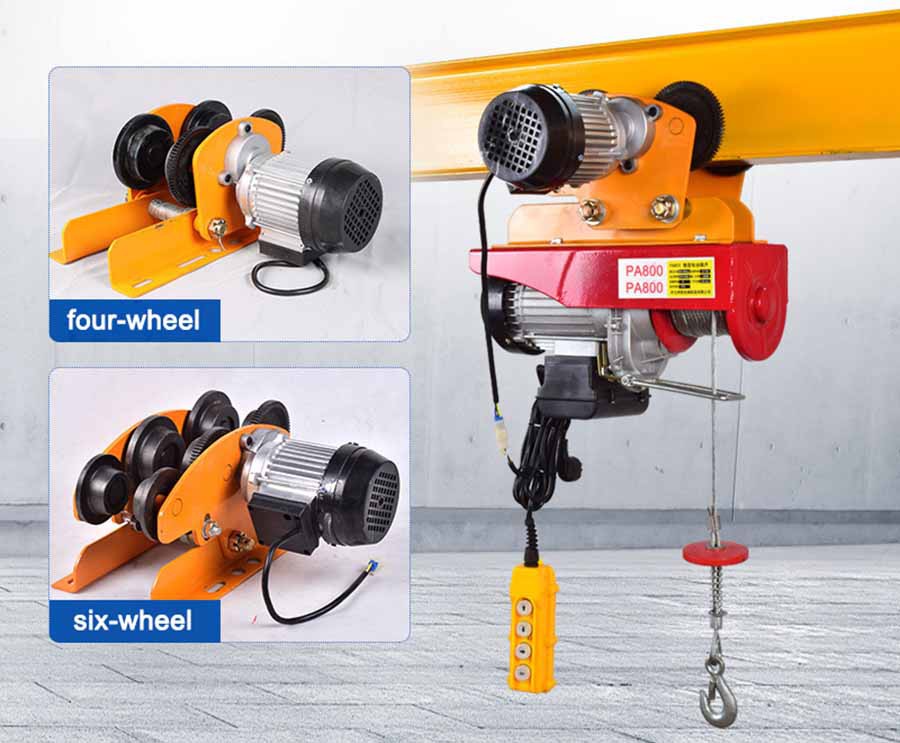

Our PA mini electric hoists adopt a compact structure, perfect for narrow spaces and light load lifting work.They are lightweight and durable, widely used in workshops, auto garages, warehouses and construction sites, especially when traditional large hoists cannot be installed due to limited space. With lifting capacity ranging from 100kg to 1000kg, this series is ideal for equipment maintenance, workpiece placement and daily general lifting operations.

Design Features

Compact Structure

Horizontal motor design greatly reduces the machine height, making full use of limited headroom space for narrow installation sites.It supports single-phase 230V/50Hz power supply, and can be directly connected to ordinary household power sockets. There is no need for three-phase industrial electricity.

Wire Rope Lifting

PA series mini hoists use wire rope for lifting, providing smoother operation compared to chain alternatives. Enclosed construction protects internal components from dust and moisture.

Safety Components

Electromagnetic brake system provides immediate load holding when power is interrupted

Upper limit lever prevents over-travel and hook over-winding

Positive and negative switch enables precise control during lifting and lowering operations

Technical Specifications

Model	Rated Lifting	Lifting Speed	Motor Power	Lifting Height
PA 200	100/200 kg	10/5 m/min	450W	12/6 m
PA 250	125/250 kg	10/5 m/min	500W	12/6 m
PA 400	200/400 kg	10/5 m/min	750W	12/6 m
PA 500	250/500 kg	10/5 m/min	900W	12/6 m
PA 600	300/600 kg	10/5 m/min	1050W	12/6 m
PA 800	400/800 kg	10/5 m/min	1300W	12/6 m
PA 1000	500/1000 kg	10/5 m/min	1600W	12/6 m

Operating Parameters:

• Voltage: 230V/50Hz
• Duty Cycle: S3 20% (2 min on, 8 min off)
• Dual-rated capacity for flexibility

Applications

Automotive Workshops：Engine pulling, transmission removal, vehicle component positioning

Manufacturing：Equipment maintenance, workpiece loading, assembly line assistance

Warehousing：Picking station material handling, stock positioning

Construction：Temporary lifting for renovation projects, material transport to upper levels

Residential Use：Basement workshops, garage lifting, home workshop setups

Installation

We provide two installation ways: fixed lifting hooks and rigid beam clamping brackets.Overall compact sizes vary by model, from 44×38×20cm up to 53×45×19cm.

Customer Experience

"Our workshop has limited space. This mini electric hoist features a horizontal motor design that significantly saves floor space. It can be easily accommodated and does not require a three-phase power supply. It can be powered by a regular 230V socket. Installation options include a hook or a clamp beam, making it flexible and convenient. It is sufficient for daily maintenance and lifting light materials. It is small, practical, and worry-free."

--Car Repair Shop Boss

Operation Notes

• Observe duty cycle limits to prevent motor overheating
• Inspect wire rope regularly for wear or damage
• Test upper limit switch before each use
• Do not exceed rated capacity
• Ensure mounting structure can support combined load

FAQ

Q:What power supply do I need?

A:230V single-phase household power is all you need-standard and easy to access, no extra setup needed.

Q:What does dual-rated capacity mean?

A:It's pretty straightforward: lighter loads can be lifted faster (100kg at 10 m/min, for instance), while heavier loads require a slower speed (like 200kg at 5 m/min). This way, it works well for different daily lifting tasks.

Q:What's the difference between wire rope and chain hoists?

A:Wire rope hoists operate more smoothly and quietly. Chain hoists hold up better in harsh conditions, but you'll need to maintain them more often to keep them running well.

Q:How do I mount it to a ceiling?

A:Use the fixed suspension hook if you want a permanent setup. For beam mounting, go with the rigid clamp. Most importantly, make sure the mounting spot can support both the hoist and the load you're lifting.

Q:What maintenance is required?

A:Regular inspection on wire rope is necessary. Once wear, bend or damage is found, please change a new one immediately.Also make sure your limit switch works well, and keep motor dry and clean during daily use.

Q:Can I use this outdoors?

A:This hoist isn't made for permanent outdoor use. It has basic sealed protection, so extra weatherproofing is required for any outdoor applications.

Q:What are included when the goods are dispatched?

A:The package comes with the hoist unit, power plug, upper limit lever, and lower hook. Please note that mounting hardware is sold separately.
