Electric Hoist For Gantry Crane

Description

An electric hoist is a common lifting device widely used across industrial applications. It is often mounted on overhead cranes, gantry cranes and other lifting machinery. It is compact in size, lightweight and easy to operate. The core components are the electric motor, transmission parts, drum and control system. According to the components used during lifting, there are mainly two types of electric hoists: those using steel wire ropes hoist and chain hoist.

It's operates through electric power to lift heavy objects vertically or move them horizontally. You can control the lifting and lowering simply by pressing a button or using a remote control.

Types of Electric Hoist for Gantry Crane

Wire Rope Electric Hoist

The wire rope hoist is a lifting equipment that uses steel wire ropes as the traction medium. Its design is aimed at carrying heavier loads and reaching higher lifting heights. Due to the durability of steel wire ropes, it becomes the preferred tool for transporting in harsh working environments.Its maximum load-bearing capacity can reach up to 32 tons, and the maximum lifting height can reach 60 meters. With such performance advantages, it is widely applied in various industrial scenarios such as manufacturing and construction.

Key Specifications:

Lifting speed	8 m/min (single speed) or 8/0.8 m/min (dual speed)
Travel speed	20 m/min (standard) or 20/2 m/min (variable)
Motor power	0.2 kW - 15 kW
Duty class	M3 - M6
Rope diameter	3.5mm - 16mm

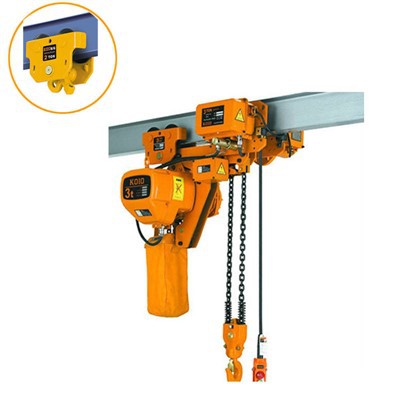

Electric Chain Hoist

The chain hoist mainly used for transporting goods and equipment maintenance. The operation methods include ground buttons and remote control/wireless remote control.Its lifting capacity is typically between 0.5 tons and 5 tons,The maximum lifting height can reach up to 12 meters. It can meet the lifting needs of most industrial scenarios and is suitable for various routine operations.

Key Specifications:

Lifting speed	6-8 m/min
Motor power	0.3 kW - 2.2 kW
Chain pitch	5mm - 10mm



How to Choose the Right Electric Hoist

Match Capacity to Your Needs

The selection should be based on actual needs. Reserving 20% of the rated capacity can effectively avoid overload risks and extend the service life of the equipment.

Check Lifting Height

Measure the vertical distance your load must travel. Standard heights range from 3m to 30m for wire rope hoists. Custom heights are available for special applications.

Consider Duty Cycle

Light duty: Occasional use (maintenance shops)

Medium duty: Daily operation (assembly lines)

Heavy duty: Continuous operation (production facilities)

Choose Speed Options

Single speed: Simple, cost-effective for basic lifting

Dual speed: Fast approach with slow positioning for precision

Variable frequency drive: Smooth acceleration and adjustable speeds

Key Features

Electric hoist overload limiter to prevent overloading, an upper limit switch for hook height control, an emergency stop function, and thermal protection to stop motor overheating. For controls, pick wired pendant, wireless remote, or dual mode. The motor gets IP54/IP55 enclosure against dust and water, Class F or H insulation for heat resistance, and a thermal protector to prevent burnout.

Conclusion

Picking the right electric hoist for gantry crane comes down to lift weight and work conditions. Heavy loads in complex settings need a wire rope hoist. Smaller tons with precision work suit a chain hoist better. Stick to installation guidelines and maintain the equipment regularly-it runs longer that way.

Buy smart. Quality and safety features count. Pick a manufacturer with solid after-sales service and available spare parts. Durable equipment keeps the job site running and gives operators confidence.

FAQ

Q: Which one should I choose, wire rope hoist or chain hoist?

A: If you need high lifting capacity, large tonnage, and cost sensitivity, electric steel wire rope hoists should be given priority consideration; if you emphasize safety, accuracy, frequent use or space constraints, electric chain hoists are recommended.

Q: Can both be used with gantry cranes?

A: Yes, but you have to check the trolley first. The hoist's trolley needs to match your crane's beam type (I-beam or H-beam) and size. Also, make sure the crane can support the hoist, trolley, and your maximum load together.

Q: What's the difference in lifting speed between the two?

A: Chain hoists are usually slower, which is better for precise positioning. Wire rope hoists have faster lifting speeds, making them more efficient for heavy loads that don't need super precise placement.
