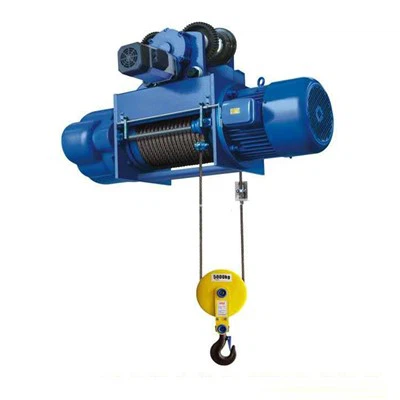

Electric Rope Hoist
Lifting Capacity:1 ton - 50 ton+
Duty Classification:M5, M6
Lifting Speed: Speed:5/0.8 m/min
Traveling Speed (Trolley):2 - 20 m/min
Power Supply:3-Phase, 380V, 50Hz (Standard)
Control Voltage:24V / 48V
This hoist provides smooth, efficient and safe vertical lifting for goods, with a load capacity covering several tons. The upgraded European-style wire rope hoist comes with a compact structure, low energy consumption and intelligent control. It can be used together with overhead cranes or operate independently. Stable lifting and accurate positioning help improve efficiency and safety in workshops.
Technical Specifications
When selecting the model, it is necessary to match the corresponding technical performance based on the actual usage requirements on site. The following are the regular key parameters of industrial wire rope crane:
| Parameter | Typical Specification | Notes |
|---|---|---|
| Lifting Capacity | 1 ton - 50 ton+ | Specialized models available for higher capacities. |
| Duty Classification | M5, M6 | Indicates suitability for medium to heavy-duty work cycles. |
| Lifting Speed | 5/0.8 m/min | Often features dual-speed or variable frequency drive (VFD) for precise control. |
| Traveling Speed (Trolley) | 2 - 20 m/min | Speed varies based on model and configuration. |
| Power Supply | 3-Phase, 380V, 50Hz (Standard) | Other voltages (220V-690V) are typically customizable. |
| Control Voltage | 24V / 48V | Low-voltage pendant for enhanced operator safety. |
| Key Safety Features | Electromagnetic disc brake, Upper/Lower limit switches, Overload protection | Integral systems for reliable and safe operation. |
Design & Features
The mainstream electric rope hoist currently available on the market all adopt mature and advanced designs, providing users with tangible advantages in use:
- Modular design, flexible and easy to operate :Modular structure, flexible configuration, multiple installation methods, and can be adjusted flexibly according to the on-site operation requirements.
- Compact structure, low clear height :Optimized structure combined with a large drum design effectively reduces the clear height, enabling a greater lifting height in a narrow space.
- Intelligent monitoring, visible status :High-end models come with an integrated control system, which can monitor the load, operation times and equipment status in real time, facilitating maintenance in advance.
- Sturdy and durable, simple maintenance :The overall design leans towards long-term convenience. The gearbox is lubricated for life, and it is combined with international brand wire ropes and long-life brakes, resulting in lower usage costs.
Applications
The sturdy and durable wire rope hoist are indispensable in many industries:
- Manufacturing: They are responsible for lifting heavy components and machinery.
- Warehousing: They are mainly used for loading and unloading goods and are often used in combination with gantry cranes.
- Steel and Metal Processing: They are key equipment in foundry workshops and metal processing plants.
- Heavy Industry: They complete the maintenance and transportation of large components.
Selection Guide
With various types available, here's how to narrow your choice:
- Standard Wire Rope Hoist: Your reliable, high-value workhorse for general factory and workshop lifting.
- European Style Hoist: The premium choice for superior performance, higher duty cycles, compact size, and advanced smart controls.
- Explosion-Proof Hoist: Essential for safe operation in hazardous locations with flammable atmospheres.
- Low Headroom Hoist: The optimal solution when maximizing lift height under low ceilings is critical.
FAQs
Q: What is the difference between European-type and standard wire rope hoists?
A: European-type hoists are more compact, run smoother, save more energy and space. They also offer longer service life and better stability.
Q: Can this hoist be used outdoors?
A: Certain models are suitable for outdoor use. We can provide rain and dust protection as required. For long-term outdoor applications, please inform us of your working environment.
Q: Can it work with overhead cranes, gantry cranes or jib cranes?
A: Yes. It can be used standalone or combined with overhead cranes, gantry cranes and jib cranes.
Q: Does the hoist support customization?
A: Yes, custom solutions can be provided based on parameters such as lifting weight and lifting height.
Why Choose Us?
This electric rope hoist boosts productivity and safety while cutting long-term costs. Its reliable, compact, and smart design helps make your operation more efficient. Need a suitable lifting solution? See our full range of industrial hoists and crane systems for your material handling needs.
