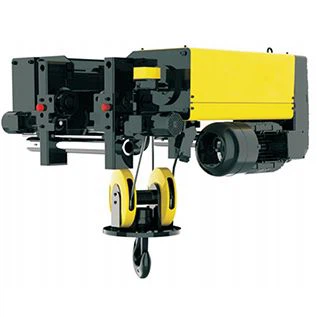

The European Single Beam Electric Wire Rope Hoist
Lifting Height: 6-18m
Working Level: m5
Lifting Speed: 5/0.8 (m/min)
Travel Speed: 5-20 (m/min)
The European Single Beam Electric Wire Rope Hoist is a highly efficient and reliable lifting device designed to meet the demands of modern industry. Its outstanding performance and elegant appearance make it a leader in the market.
Features and Advantages
Manufacturing Standard: Made with FE grade materials, ensuring smooth startup and extremely low operating noise.
Durable Materials: Gear materials are made of chromium alloy, resulting in minimal wear and extended service life.
High Protection Level: Protection level reaches IP55, H-class insulation, ensuring long life for the motor and gearbox.
Dustproof Design: Aesthetic appearance, low installation structure, lightweight, and maintenance-free, suitable for various working environments.
High Cost-Performance Ratio: Lifespan is 5-10 times that of ordinary hoists, reliable and cost-effective, compliant with international and domestic design standards.
|
Trolley Design
The trolley features a dual-wheel drive located on both sides of the main unit, providing uniform and efficient traction. The drive motor operates through a threaded gear transmission mechanism, ensuring smooth start and stop actions.
Drum, Rope Layout, and Locking Mechanism
The lifting mechanism's wire rope winding design allows for maximum lifting height while maintaining a low overall height of the machine. The top end of the wire rope is secured by three high-strength metal locks, ensuring that there are still three coils left when the hook is at a low position for operational safety.
Limit Switches and Overload Protection
The lifting mechanism is equipped with a standard upper and lower rotary circuit limit switch, with an optional touch-type top limit switch. Additionally, the machine features an overload protection device to ensure operational safety.
Pulley and Hook
The pulley is equipped with a rotating hook that can freely rotate within a horizontal range of 360 degrees and a vertical range of 180 degrees, facilitating the loading and unloading of heavy loads.
Control Box
The enclosed control box for the main lifting mechanism and trolley components has a protection level of P54. The main functions of the control section include:
Phase loss detection and protection
Motor circuit fuse protection
Transformer circuit fuse protection
Lifting mechanism action monitoring (optional)
Motor overheat protection
Lifting mechanism overload protection
All control components ensure the highest quality
Complies with electrical standards in China and Europe
Gearbox and Motor
The oil-immersed gear transmission mechanism features a three-stage reduction design, with precision-machined gear sets operating within a leak-proof aluminum gearbox. The gearbox's design facilitates air cooling and allows for easy maintenance in case of faults. This design ensures maximum lifting capacity while providing a low overall height specification, saving costs and enhancing operational efficiency. The lifting motor is dual-speed adjustable, with a high-to-low speed ratio of up to 6:1, meeting the comprehensive requirements for accurate positioning during low-speed operation and rapid lifting during high-speed operation. The modular design and flexible combinations cater to the personalized needs of customers.
Choose the European Single Beam Electric Wire Rope Hoist for an efficient, safe, and economical lifting solution. Our products undergo rigorous quality inspections to ensure that each hoist performs excellently in high-intensity working environments. Let's enhance work efficiency and ensure safety together!
