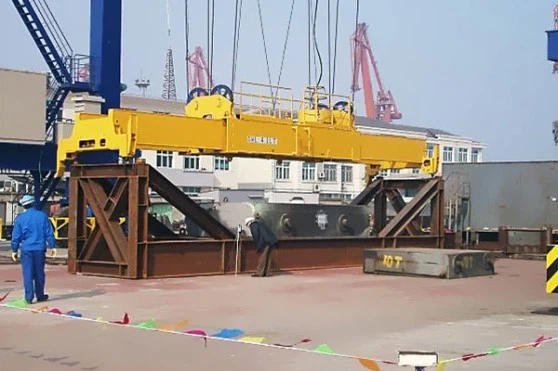

Electric Single Lift Telescopic Spreader
I. Product Profile
The telescopic spreader drives a telescopic chain or oil cylinder through electric or hydraulic transmission, so that the spreader changes its length through automatic expansion and contraction to adapt to the loading and unloading of containers of different specifications. It can lift various types of containers such as ISO20', 40' and 45'. Although the telescopic spreader is heavy, it is easy to adjust the length, flexible to operate, strong in versatility and high in production efficiency. This type of crane has two types of fixed guide plates and movable guide plates to choose from.
II. Specification
|
Rated lifting load
|
40 ton
|
|
Expansion time (20'to 40')
|
~22 S
|
|
Twistlock rotation 90°
|
~ 1 S
|
|
Rotation(±220°)
|
~35S
|
|
Power voltage/ Frequency
|
AC 380V (3P)/50HZ(as agreed)
|
|
Control voltage
|
AC 220V(as agreed)
|
|
Precaution class
|
IP 55
|
|
Maximum power consumption
|
4KW
|
|
Ambient temperature
|
-20℃ ~+45℃
|
|
Twistlock Mode
|
ISO floating twistlock, driven by electric motor and reduction gearbox
|
|
Telescopic Mode
|
Motor driven, driven via roller chain connection
|
|
Application
|
QC,RMG, RTG
|
III. Product Features
1. Use motor drive;
2. Compared with hydraulic spreaders, it has compact structure, light weight, and is green and environmentally friendly;
3. Double selection of fixed guide plate and movable guide plate.
V. Packing & Delivery
