Turning Transfer Cart
Overview
Transfer cart with turntable is a device used to transfer goods on industrial production lines. It usually consists of a platform and a rotatable disc, which is driven by an electric or hydraulic system and can move and rotate in different directions to facilitate the rapid transfer and positioning of goods. Transfer carts with turntables are usually used on production lines that require frequent transfer of goods, such as assembly lines, packaging lines, etc. It can help workers transfer goods from one workstation to another, thereby improving production efficiency and reducing labor costs.

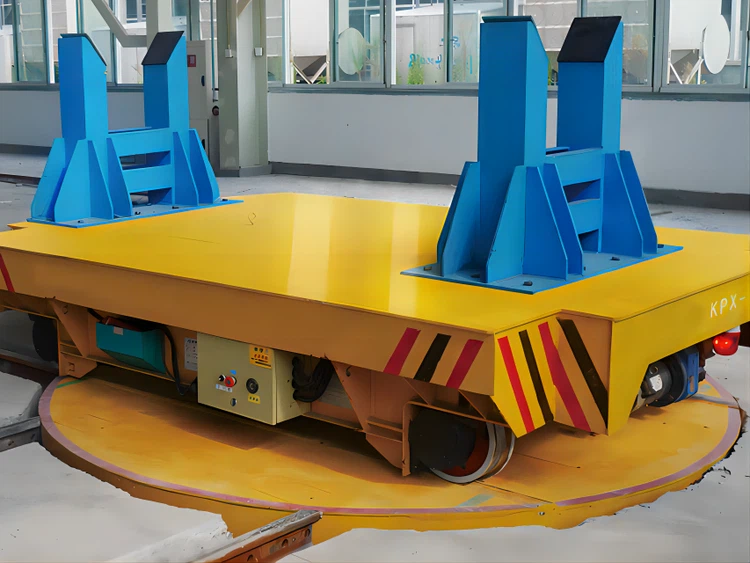

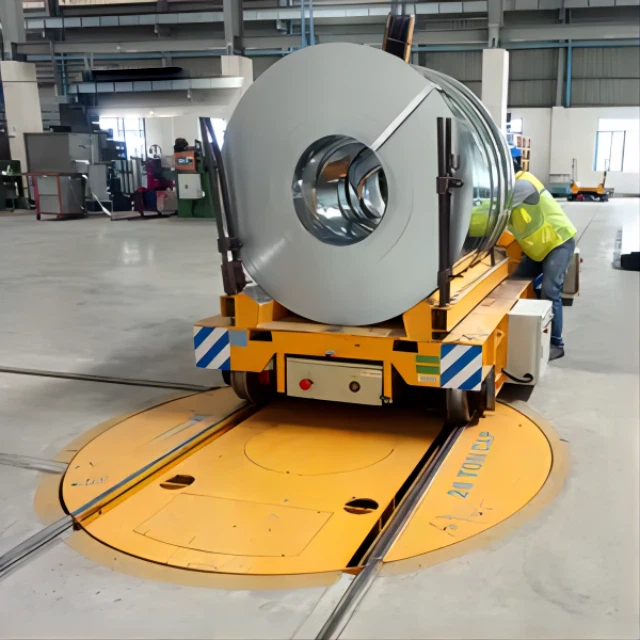

Detailed Images
Parameter Sheet
|
Modle |
KPX-10T |
KPX-30T |
KPX-50T |
KPX-80T |
KPX-100T |
KPX-150T |
|
Table Size (m) |
3.6*2.0*0.5 |
4.5*2.2*0.6 |
5.5*2.5*0.65 |
6.0*2.6*0.8 |
6.5*2.8*0.9 |
10*3.0*1.2 |
|
Power |
Maintenance Free Battery |
|||||
|
Rail inner Gauge |
1435mm |
1435mm |
1435mm |
1800mm |
2000mm |
2000mm |
|
Wheel Dia. |
350mm |
400mm |
500mm |
600mm |
600mm |
600mm |
|
Running Speed |
0-20m/min |
0-20m/min |
0-20m/min |
0-20m/min |
0-20m/min |
0-20m/min |
|
Motor Power |
1.6kw |
3.5kw |
5kw |
8kw |
10kw |
15kw |
|
Battery Capacity |
180Ah |
250Ah |
330Ah |
400Ah |
440Ah |
600Ah |
|
Battery Volatge |
48v |
48v |
48v |
72v |
72v |
72v |
|
Max Wheel Load |
42.6Kn |
110.4Kn |
174Kn |
278.4Kn |
343.8Kn |
265.2Kn |
|
Reference weight |
4.2t |
6.8t |
8t |
12.8t |
14.6t |
26.8t |
|
Recommend Rail |
P24 |
P38 |
P43 |
P50 |
QU100 |
QU100 |
Features
1. Improve production efficiency: By quickly transferring goods, the waiting time on the production line is reduced and the overall production efficiency is improved.
2. Flexibility: The position and angle of the turntable can be adjusted according to different production needs and adapted to goods of different sizes and shapes.
3. Save labor costs: Reduce the workload of manual handling of goods and reduce labor costs.
4. Safety: The equipment is stable and reliable, which can ensure that the goods will not be damaged during the transfer process, while also reducing the risk of workers being injured.
