Cable Transfer Cart
Product Description
Electric transfer cart is that the safe sliding wire is set in a channel ditched beside the rail, and also can be set on the ground along the wall.It contacts AC 380V sliding wire directly into the AC electrical control system of the transfer cart to let in start,stop, go forward and backward and so on. The cart gets power from the slider of the safe sliding line which is moved by the cart's running.

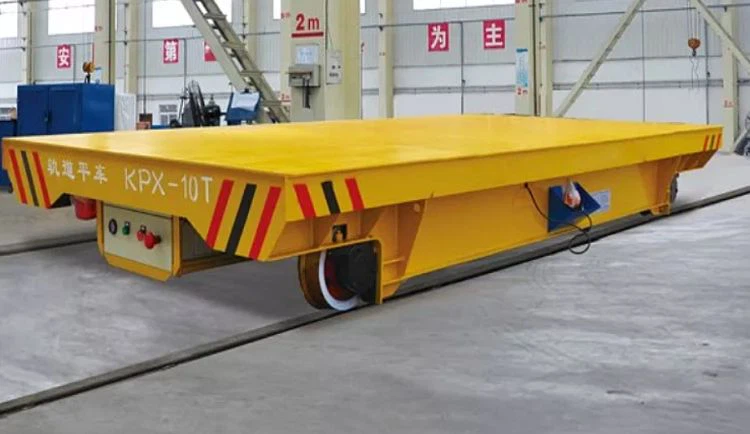

Detailed Images
Technical Data
| Model | KPX-10 | KPX-20 | KPX-50 | KPX-100 | KPX-150 | |
| Rated Load(t) | 10 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 3200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1435 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 400 | 400 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 2 | 2.5 | 5.5 | 11 | 15 | |
| Battery(V) | 48 | 48 | 48 | 48 | 48 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Product Features
1. Anti-explosion;
2. Anti-high temperature;
3. Apply to various occasions;
4. It has no strict requirement for the construction of the railway;
5. No limit of running and working hours;
6. Adjustable speed.
Application Scenarios
Packing
