Ceiling Mounted Articulating Jib Crane

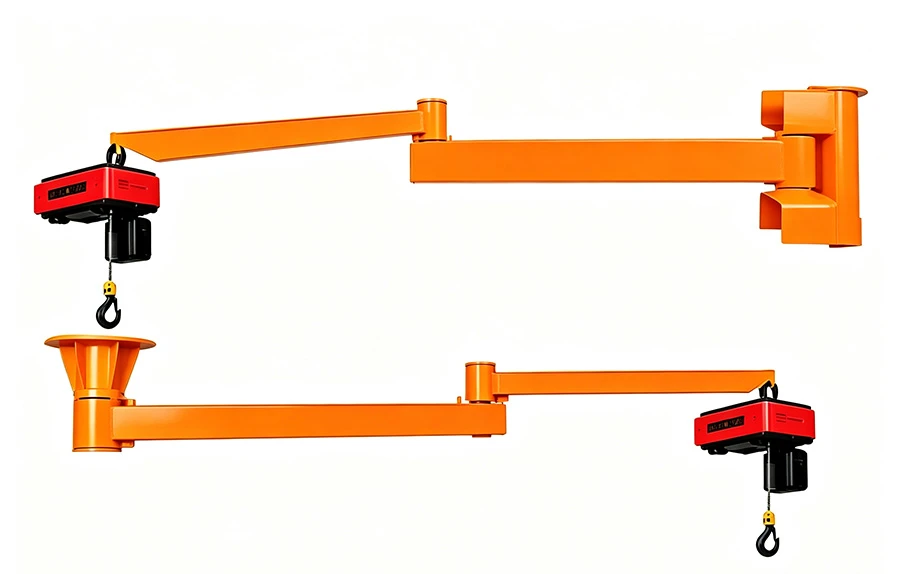

Ceiling-mounted articulating jib crane serves as a customized lifting solution built for industrial plants with limited floor area and strict requirements on precise load placement. Different from conventional base-fixed jib cranes, this overhead hanging structure leaves the ground completely unobstructed, perfectly matching compact assembly production lines, CNC processing stations and lab operation areas.

Equipped with double hinge folding arms, the lifting equipment boasts outstanding maneuverability. It can bypass wall corners and onsite barriers that block the working coverage of ordinary I-beam jib cranes.

1. Maximum Floor Space Utilization

Mounting the whole crane unit onto ceiling beams or overhead supporting frames keeps floor passages unobstructed for AGVs, forklifts and staff movement. This installation type proves vital for lean manufacturing workshops that require full utilization of every available floor area to boost production efficiency.

2. Superior Articulation and Reach

The articulating arm features two sets of high-precision bearings, providing a dual-axis rotation. The primary arm rotates up to 360°, while the secondary arm provides additional maneuverability. This "knuckle" design allows the hoist to reach into machines or under obstructions, ensuring 100% coverage within the working radius.

3. Ergonomic Efficiency and Reduced Torsional Stress

KNCRANES fabricates jib arms out of tough, light cold-rolled steel.The arm itself weighs very little, and all pivot joints run with little friction. Operators won't need much strength to shift lifted goods, which eases long-hour physical tiredness and prevents repetitive motion injuries.

• Automotive Assembly Lines: Accurate placement of vehicle engines, power batteries and interior parts
• CNC Machining Workstations: Transport bulky workpieces into narrow-access machine enclosures
• Chemical & Pharmaceutical Plants: Transfer delicate materials inside cleanrooms to avoid occupying floor space
• Packaging & Logistics Workshops: Fast pallet stacking and sorting inside high-speed handling stations

1.What are the structural requirements for installing a ceiling-mounted articulating jib crane?

Installation requires a certified overhead support structure, such as a reinforced concrete ceiling or a steel building frame (I-beams/H-beams). Our engineering team performs a structural load analysis to ensure the mounting surface can withstand the dynamic forces and moments (torque) generated during lifting operations.

A standard jib crane moves in a fixed circular arc. An articulating (knuckle) jib crane has a secondary pivot point, allowing the arm to "fold" and move within its own radius. This enables the crane to reach around pillars, move through narrow openings, and provide precise movement in a "non-linear" path.

Yes. For safety and equipment protection, Kinocranes provides adjustable mechanical rotation stops. These can limit the movement of both the primary and secondary arms to prevent the crane from colliding with walls, electrical lines, or other machinery.

Due to the high-quality industrial bearings used in our articulating joints, maintenance is minimal. We recommend a semi-annual inspection of the pivot point lubrication and a torque check on the ceiling mounting bolts to ensure long-term operational safety.

We design and build premium lifting machinery compliant with strict global industrial standards at KNCRANES. Our ceiling-hung articulating jib cranes are far more than simple lifting gear-they serve as integral parts to boost your overall production output.

Contact our engineering department today for a customized CAD simulation of your workspace layout.
