Electric Wire Rope Hoist 2 Ton

If you're running a workshop or managing a warehouse, you've probably thought about getting an electric wire rope hoist. They're everywhere for a reason - way faster than manual lifting and safer too. But here's the thing: a lot of people jump straight to the biggest capacity they can afford, when actually a electric wire rope hoist 2 ton model handles most jobs just fine.

As an experienced electric wire rope hoist manufacturer with years of industry expertise, the 2‑ton model is our sweet spot. Unlike overkill 5‑ton units, it delivers ample power for nearly all daily lifting operations.

Why a 2 Ton Wire Rope Hoist Works for Most Workshops

Think about what you actually lift. Steel coils? Machine parts? Molds? Most of this stuff tops out around 1-1.5 tons. Sure, you might occasionally need to move something heavier, but that's rare. A electric wire rope hoist 2 ton gives you headroom without wasting money on capacity you'll never use.

The other thing people don't consider: bigger hoists need bigger cranes, which means more structural work. A 2-ton model usually fits on existing crane systems without major modifications.

Technical Specifications

Let's talk technical - but keep it practical since that's what matters on the shop floor. Here's what matters:

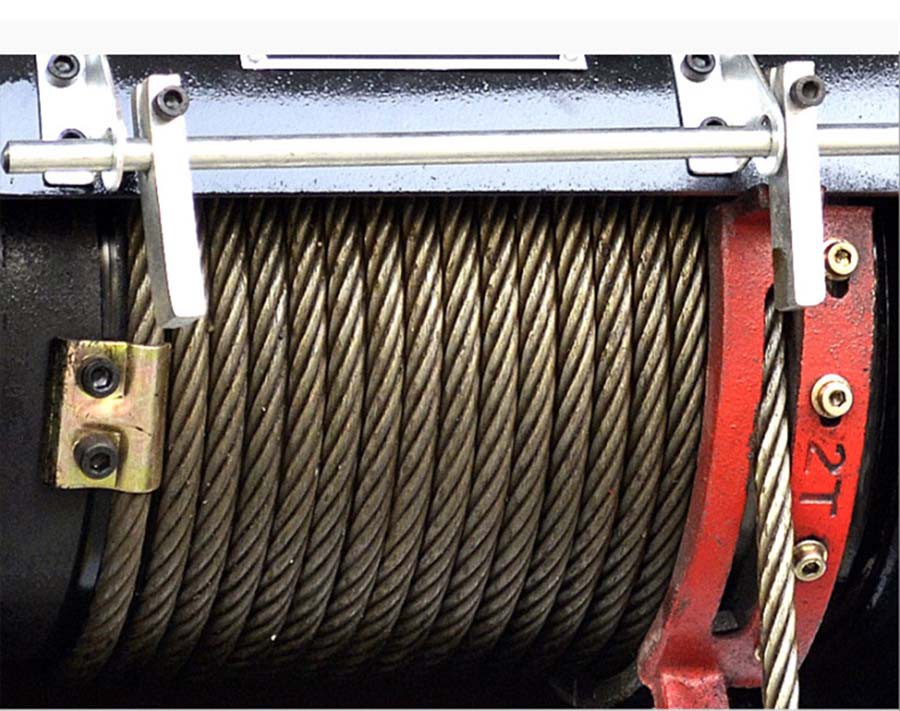

One thing that catches people out: the wire rope diameter. Some merchants use thinner steel wire ropes to save costs, which is incorrect. It is necessary to insist on using wire ropes with a diameter of at least 8mm.

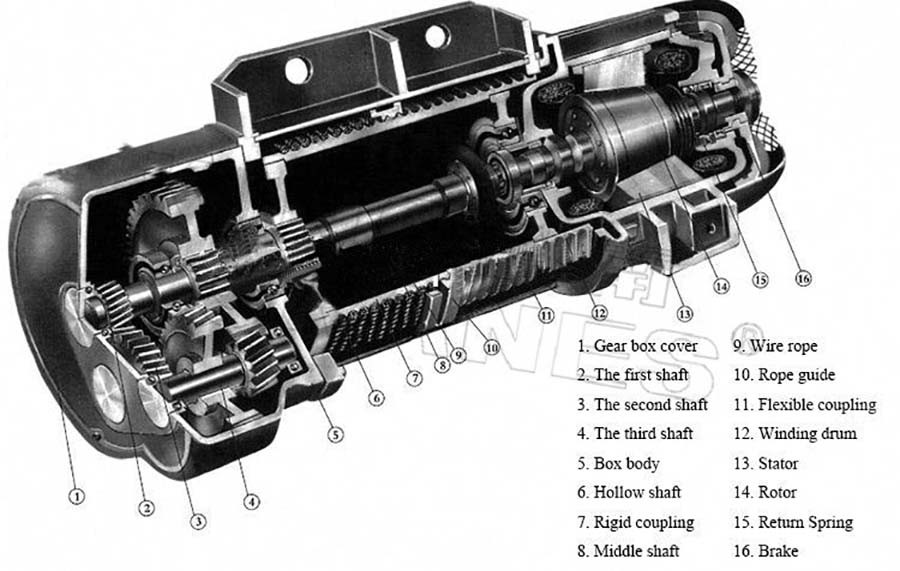

Key Components That Matter

After the brake system, which is non-negotiable for safety. Most quality electric wire rope hoist units use a conical rotor motor - the brake engages automatically when power cuts. Trust me, you want this feature if you're lifting anything over your head.

The rope guide is another big deal. It keeps the wire from spilling off the drum, which destroys the rope (and can be dangerous). Some cheaper models skip this or use a basic version,This is not advisable.

For the gearbox, helical gears are quieter and last longer than worm gears. Worth the extra cost if you're running this thing daily.

Common Applications

A electric wire rope hoist 2 ton works well in a lot of settings:

• Machine shops: Loading and unloading CNC machines, moving molds between workstations
• Warehousing: Loading trucks, organizing inventory on high shelves
• Fabrication: Positioning steel for welding, moving assembled parts
• Assembly lines: Handling components during production
• Maintenance: Lifting equipment for repair work

Installation Reality Check

Before installation and use, it is necessary to measure the size of the beam in advance. After the measurement is completed, you can order an electric wire rope hoist 2 ton. It must be able to pass through the beam and also need sufficient space for the trolley to actually move. In addition, the power supply issue should also be considered. A three-phase power supply is required near the crane operation area. Please ensure that the power supply in your workshop is industrial power supply, and there is a power supply source nearby. Do not pull the wire from a distant place to the ceiling, as it is very dangerous.

Safety Basics

There is no need for you to deliberately protect it, but you should carry out basic maintenance work:

• Check the wire rope for broken strands weekly (replace if you see more than 2-3 broken wires in one lay)
• Grease the gearbox every 6 months or 500 hours - whichever comes first
• Test the brake before the first lift every day
• Keep the rope guide clean - built-up grit makes it wear out faster

No need for complicated maintenance schedules, just consistent attention to the things that actually fail.

When a 2 Ton Won't Cut It

Sometimes you actually need more capacity. If you're lifting steel plates over 25mm thick, concrete products, or dense machinery, consider stepping up. Otherwise, a electric wire rope hoist 2 ton will handle 90% of what most facilities throw at it.

In conclusion, do not invest too much in unnecessary aspects. Choose a suitable lifting tool for you, use it properly, and maintain it well. This will enable it to last longer. If you still don't know how to choose, please contact us now!
