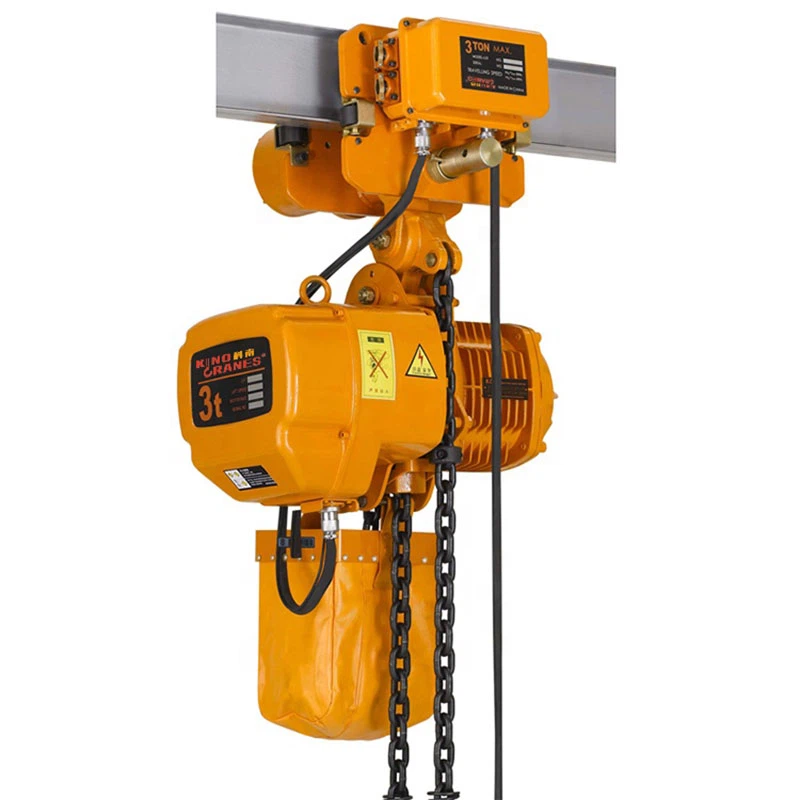

3 Ton Electric Chain Hoist



In scenarios where stable and controllable lifting of heavy objects is required, the 3-ton electric chain hoist is a very practical industrial lifting equipment. It has a rated lifting capacity of 3000kg and operates stably. There is no need for manual handling; simply pressing the remote control button enables easy lifting of heavy objects.This device supports various installation methods such as hook , manual trolley, and electric trolley, and can be adapted to different working scenarios in workshops, warehouses, production lines, etc. The body is sturdy and durable, the operation is safe and stable, and the service life is also more guaranteed.It is specifically designed for daily lifting tasks.





When choosing a crane, it is necessary to consider the actual working conditions and specific parameter requirements. Below are the core technical parameters of our 3000kg electric hoist, including the standard type and the double-speed type, which can meet different usage needs.

Parameter	Single-Speed Model	Dual-Speed Model
Rated Capacity	3 Tons / 3000kg	3 Tons / 3000kg
Lifting Speed	5.6 m/min	5.6 / 1.8 m/min
Motor Power	3.0 kW	3.0 / 1.0 kW
Power Supply	3-Phase, 380V, 50Hz	3-Phase, 380V, 50Hz
Control Voltage	24V / 36V / 48V	24V / 36V / 48V
Load Chain	Φ11.2 mm, High-Alloy Steel	Φ11.2 mm, High-Alloy Steel
Travel Speed (Trolley)	Slow: 11 m/min	Fast: 21 m/min
I-Beam Range	100 - 178 mm	100 - 178 mm
Insulation Grade	Class F	Class F

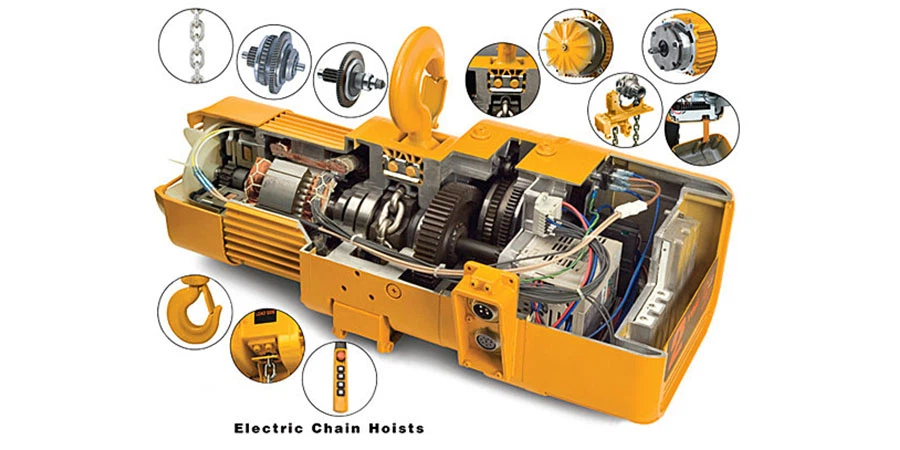

This industrial electric hoist is well-designed, safe, durable and easy to operate:

• The aluminum alloy casing is combined with heat sinks, which increases the heat dissipation efficiency by 40%, allowing for long-term continuous operation.
• Instant braking upon power loss + dual braking backup, low-voltage waterproof control, making use safer.
• Imported FEC80 wear-resistant and corrosion-resistant chain, 360° hot forged hook with safety latch.
• With upper and lower limit positions and reverse phase sequence protection, effectively preventing equipment failures.





This 3 ton chain fall is versatile enough for numerous industrial settings. Its reliability makes it ideal for:

• Manufacturing and processing: Handling steel plates, mechanical components and heavy molds.
• Warehouse logistics: Loading and unloading heavy pallets and various equipment.
• Assembly line: Installing large components, with dual-speed models providing more precise positioning.
• Maintenance workshop: Hoisting heavy equipment such as motors and gearboxes to facilitate maintenance operations.

If horizontal movement is required, combine with electric trolleys, and a 3-ton electric chain hoist can be formed, which can move flexibly on the crossbeam.





Q: What are the main advantages of the dual-speed electric hoist?

A: It has two speed settings - fast and slow. The full speed is used for regular lifting, while the slow speed (approximately one-third of the full speed) is used for precise positioning, allowing for more precise control.

Q: Will heavy objects slide down after power failure?

A: Equipped with an immediate braking function upon power loss, the load will be locked immediately upon power failure, and there will be no sliding or drifting.

Q: What does "I-Beam Range" mean?

A: It refers to the width range of the I-beam that the vehicle is compatible with. For the standard model of 3 tons, it is 100–178mm. Please check it before installation.

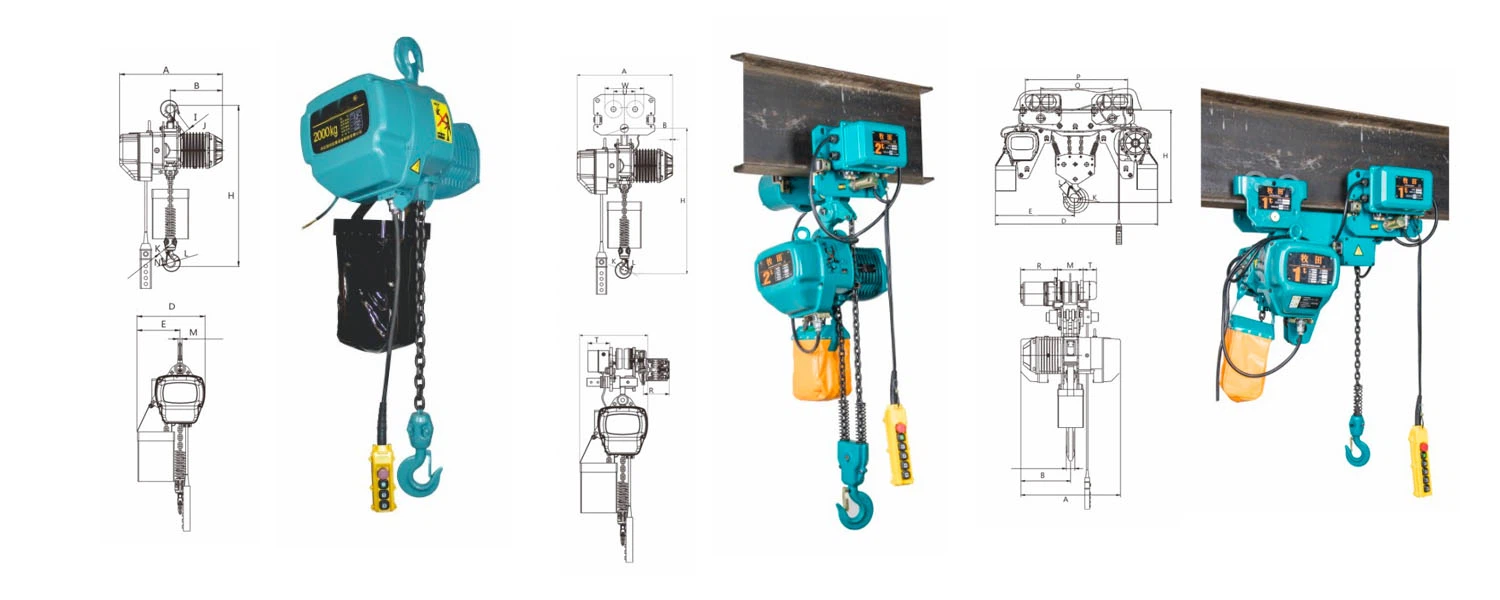

Q: How to choose between hook-type, manual trolley, and electric trolley?

A: Use the hook-type for fixed positions; the manual trolley can be moved manually along the beam; the electric trolley moves automatically, covering a larger area and having higher operational efficiency.
