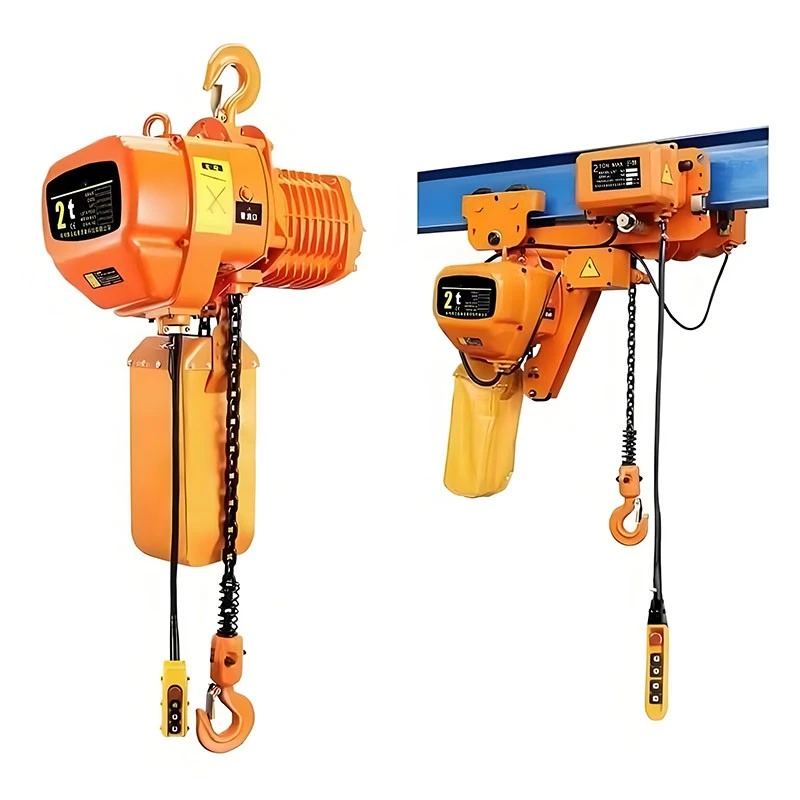

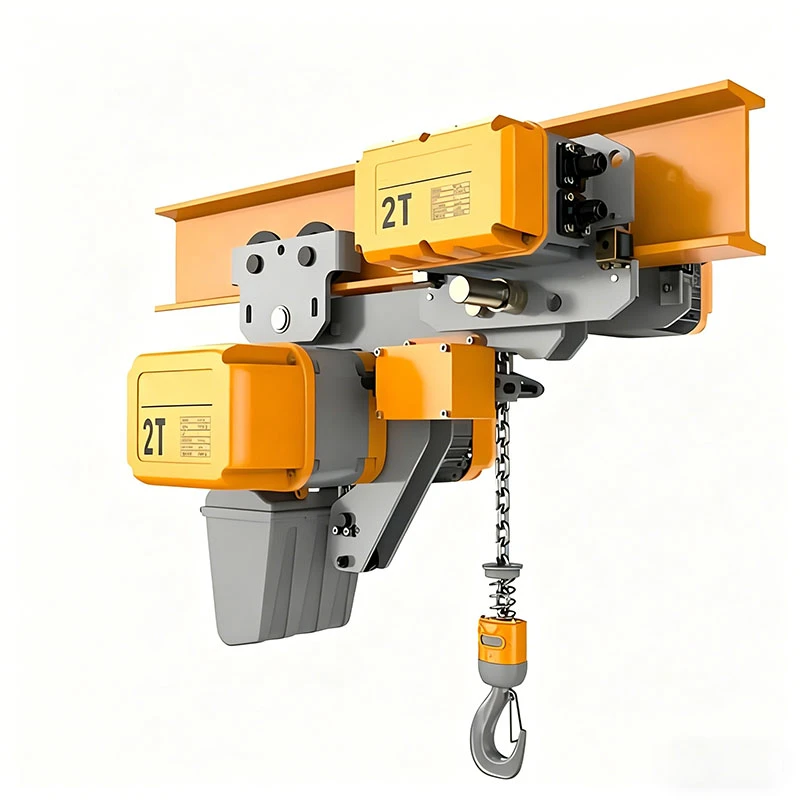

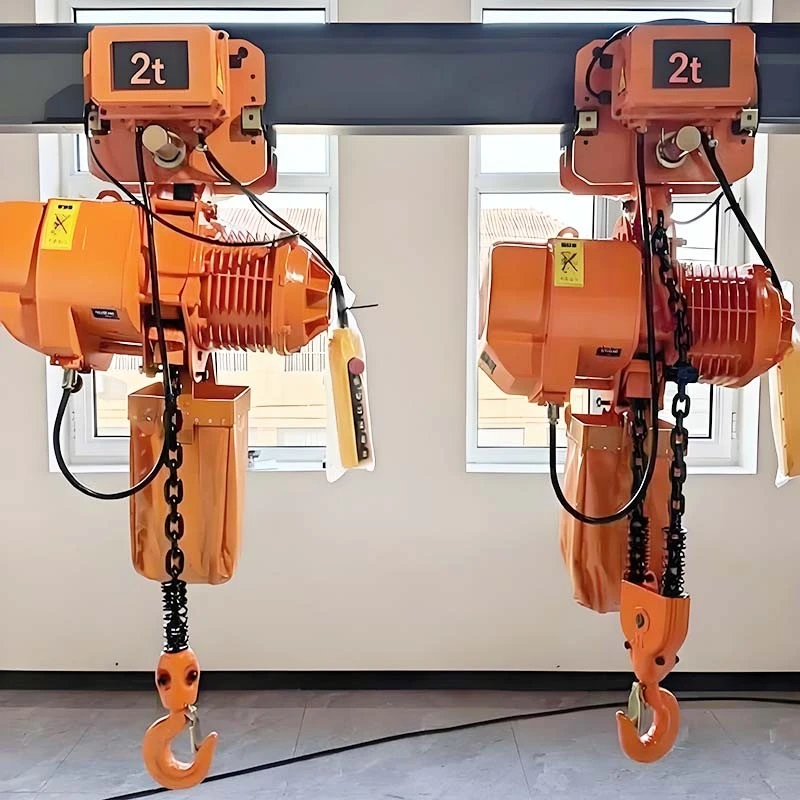

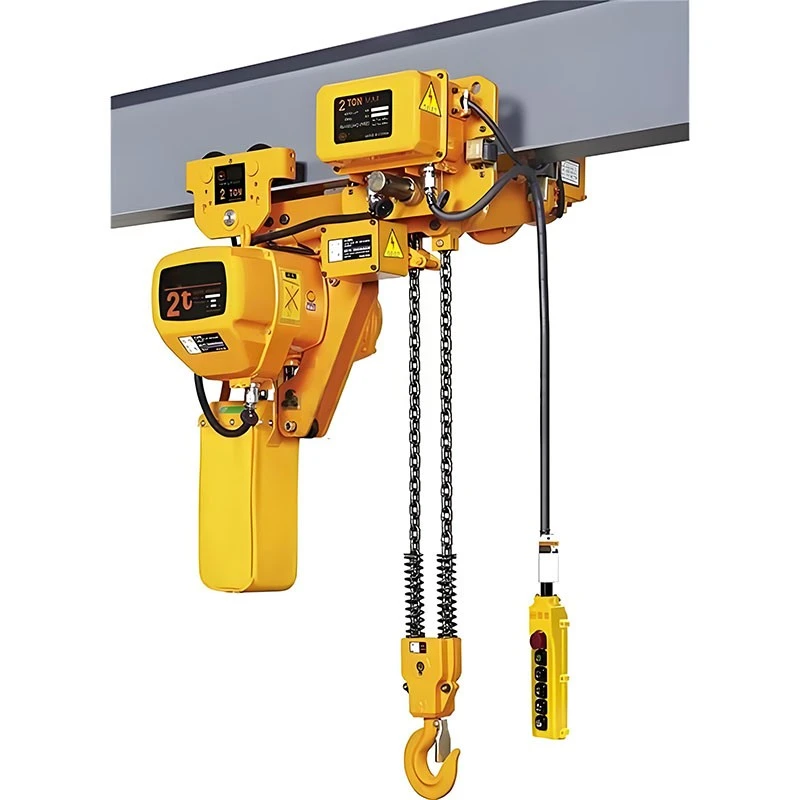

2 Ton Electric Chain Hoist

overview

This electric chain hoist motor is built for long‑hour, continuous industrial use. Depending on your setup, power rating ranges from 2.2 to 3.0 kW, with stable output and thermal protection to avoid overheating during heavy shifts. It uses standard three‑phase power, so it works with nearly all industrial power systems.

• Braking System: Double‑pawl mechanical brake. It locks instantly when power is off-no drifting, no sudden drops, giving you reliable, safe stopping for overhead lifting.
• Load Chain: Grade 80 alloy steel, 7.1mm diameter. Made to handle repeated lifting cycles. Unlike low‑cost chains that stretch or wear unevenly, this chain stays strong and stable through thousands of lifts.
• Shell: Made of high-strength aluminum alloy, it is resistant to corrosion and rust, and has excellent heat dissipation performance. With IP54/IP55 protection level, it can effectively prevent dust from entering and also protect internal electrical components from the erosion of moisture.

Key Features

Upper Limit Switch: Stops the hook automatically at a set height to prevent over‑hoisting

Emergency Stop Button: Big, clearly marked button for immediate shutdown anytime

Overload Protection: Built‑in safety device to stop damage from overloading

24V/36V/48V Control Voltage: Low‑voltage control for safer operation

Duty Cycle: Light load: 40% duty cycle, heavy load: 60% duty cycle.

Insulation Class F/H: Works reliably in high‑temperature environments

Technical Specifications

Applications

Manufacturing and assembly lines

Precise positioning is the key to assembly. Dual-speed control, slow fine adjustment, and fast movement, balancing efficiency and accuracy.

Warehouse operations

Designed specifically for pallet stacking, handling and inventory management. Compact body fits narrow aisles, operates smoothly and effectively protects the safety of goods.

Construction site

Designed for harsh outdoor environments. IP54/IP55 protection, capable of withstanding rain and dust, operates stably within the temperature range of -20°C to +40°C.

Automobile and equipment maintenance

Simplifies the repair and assembly of heavy components such as engines and gearboxes. Dual pawl braking ensures stable suspension load and guarantees safe operation for personnel.

Steel structure processing factory

Capable of positioning, welding and heavy assembly. With a sturdy body and a G80 load-bearing chain, it can withstand the rigorous tests of sparks, high temperatures and frequent heavy loads.

Why Choose This Electric Chain Hoist

Sturdy and durable: Equipped with G80 lifting chains, aluminum alloy casing and sealed electrical system, it has a long service life and is suitable for harsh working conditions.

Maintenance is simple: Daily maintenance is very straightforward. All you need to do is lubricate the chain regularly and check if the braking function is working properly. This significantly reduces your maintenance time and costs.

Wide range of applications: Whether it's slow operations requiring precise adjustments or fast transportation aiming for efficiency, the single/double-speed control, various lifting heights and modes of this equipment can be flexibly matched to easily meet diverse operational needs.

Easy installation: The body structure is compact, supporting various standard installation methods such as overhead crane, jib crane or suspension crane. Operated by professional technicians, the installation and commissioning can usually be completed within 1 hour, quickly putting it into production.

Long-term economy: High reliability, long maintenance intervals and low failure rates, significantly reducing the total life cycle usage costs.
