Pulling Winch
Pulling winch is a device used to pull objects. It usually consists of electric motor, reducer, winch drum and control system. The motor-driven reducer converts electrical energy into mechanical energy to rotate the winch drum.
Send Inquiry
Chat Now
Product Introduction
Winch Profile
Pulling winch is a device used to pull objects. It usually consists of electric motor, reducer, winch drum and control system. The motor-driven reducer converts electrical energy into mechanical energy to rotate the winch drum. A wire rope or rope is wrapped around the winch drum, and when the winch drum rotates, the wire rope or rope pulls the object outward. The control system can be used to control the start, stop, speed, direction and other parameters of the winch.

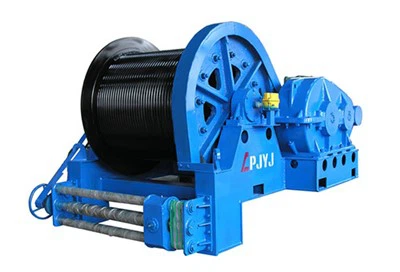

Winch Showing
Technical Parameter
|
Type
|
Rated Load (kn)
|
Rated Speed(m/min)
|
Rope capacity(m)
|
Motor Model
|
Motor Power(kw)
|
Overall Dimension (mm)
|
Total Weight(kg)
|
|
JK1
|
10
|
22
|
100
|
Y112M-4
|
4
|
620*701*417
|
300
|
|
JK2
|
20
|
24
|
120
|
Y132M-4
|
7.5
|
945*996*570
|
550
|
|
JK3.2
|
32
|
25
|
200
|
YZR180L-6
|
15
|
1325*1335*840
|
1200
|
|
JK5
|
50
|
30
|
200
|
YZR225M-6
|
30
|
1900*1620*985
|
2400
|
|
JK8
|
80
|
25
|
250
|
YZR280S-8
|
45
|
1533*1985*1045
|
3500
|
Application
