Industrial Hydraulic Winch
Product Overview

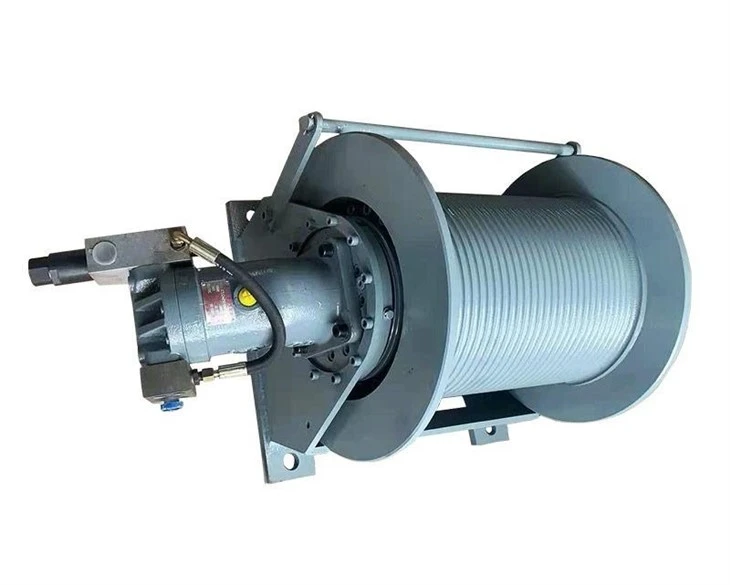

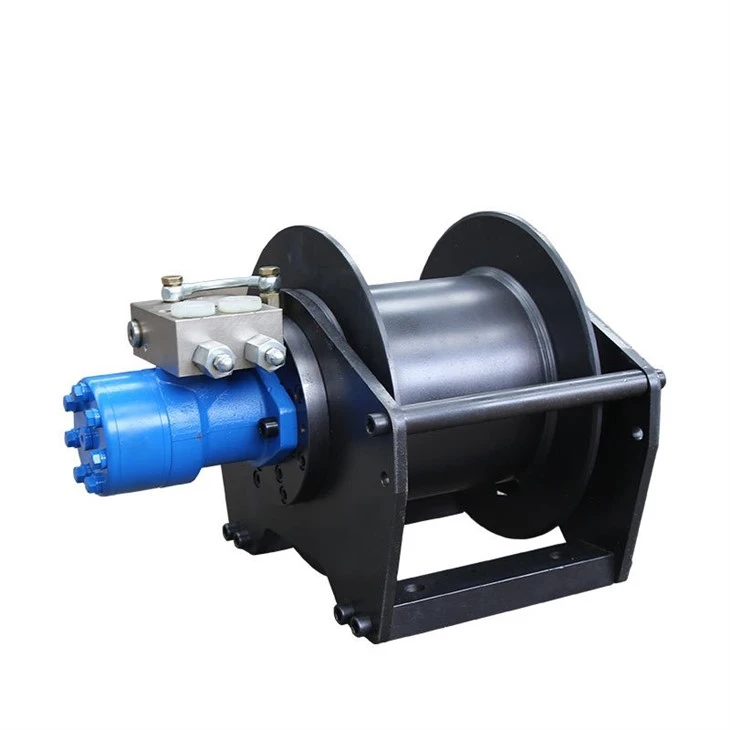

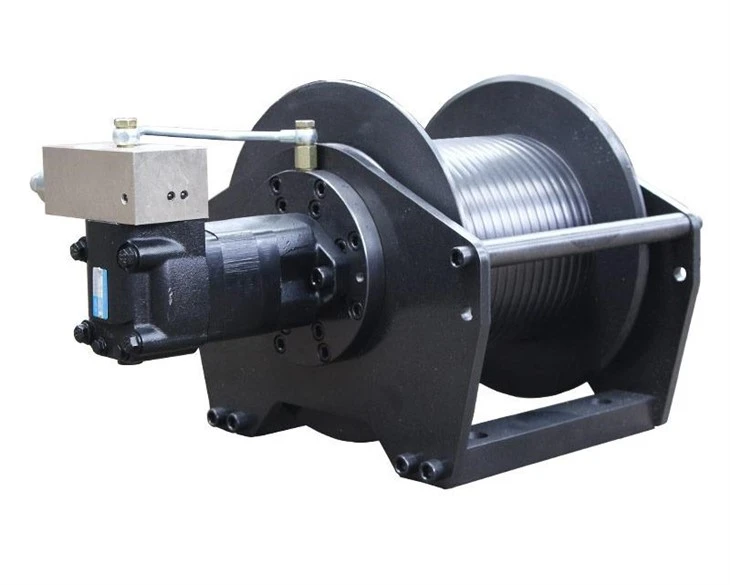

An industrial hydraulic winch is a device used to lift and pull heavy objects. It uses the high-pressure oil generated by the hydraulic system to drive a hydraulic motor and drive the drum of the winch to lift or pull heavy objects. The hydraulic system regulates the flow and pressure of oil by controlling valves to achieve precise control of the speed and force of the winch. Compared with traditional mechanical winches, hydraulic winches have the advantages of fast response, large load capacity, and flexible operation.
Product Detailed
Features
1. The rotary reducer has high speed, high integration, simple structure and large bearing capacity.
2. The rotation speed is uniform and works in coordination with the machinery to improve efficiency.
3. Thickened steel, clearly marked everywhere on the dial, easy to operate.
Technical Parameter
|
Output torque (maximum)
|
2266N.M
|
|
Reduction ratio
|
5 i
|
|
Wire rope winding number of layers
|
4
|
|
Wire rope specification
|
φ11
|
|
Output revolution (rated)
|
66Nnom(r/min)
|
|
Brake opening pressure
|
0.8 -1.5Mpa
|
|
Drive motor model
|
BM5 series/optional
|
|
Lubricating oil specification
|
1.5 L grease
|
|
Lifting weight
|
1 T
|
|
Hoisting speed
|
30-40m/min
|
