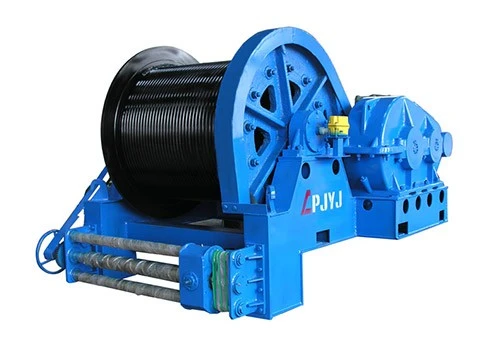

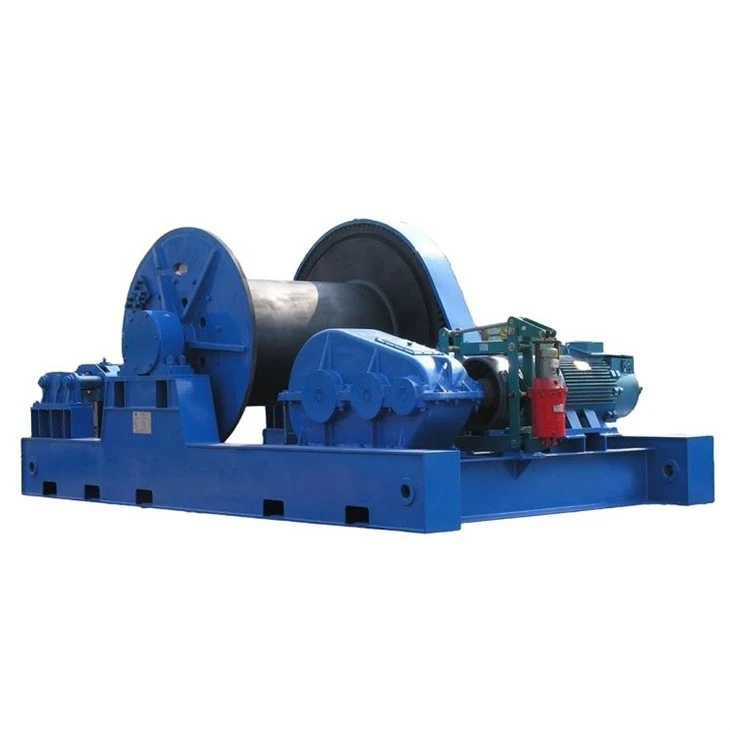

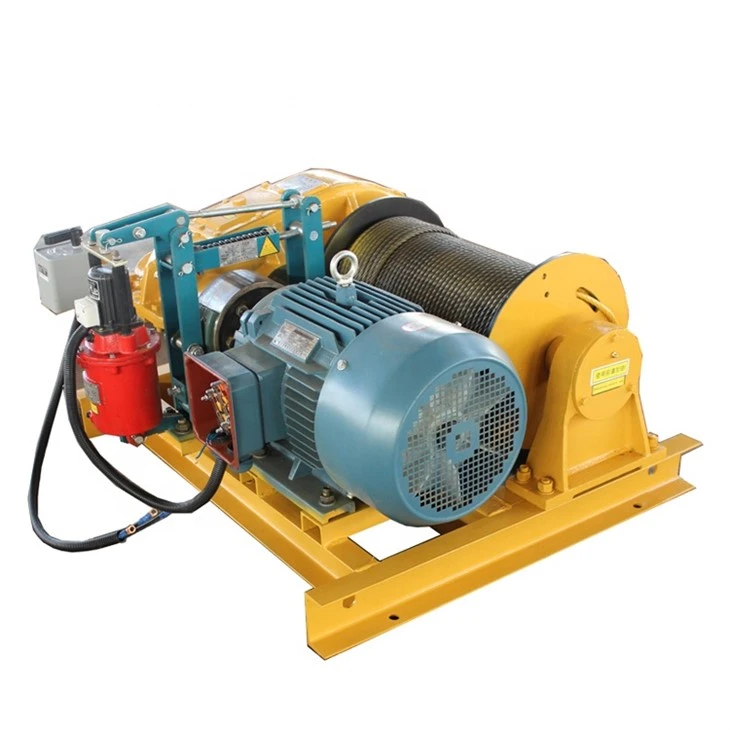

15 Ton Winch
Product Description
A cable pulling winch is a device used to pull cables or ropes and is commonly used on construction sites, power line construction, telecommunications industries, and other situations where heavy objects need to be pulled. It usually consists of motor, gear box, cable pulley, control system and other components. The working principle of the cable pull winch is to drive the gear box through the motor, causing the pulley to rotate, thereby driving the cable or rope to pull. It has the characteristics of simple structure, convenient operation, large pulling force, adjustable speed, etc., and can effectively complete various wire pulling operations.

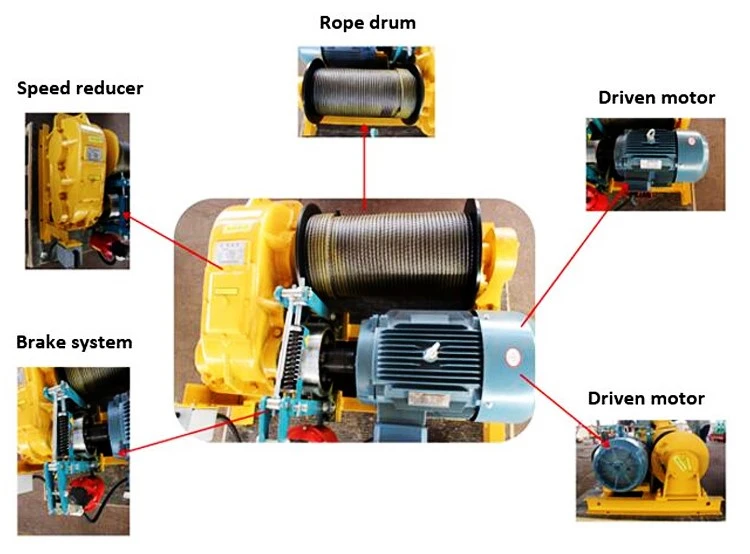

Product Detailed
Technical Data
|
Model
|
JY1
|
JY3
|
JY5
|
JY8
|
JY10
|
|
|
line pull capacity
|
1000
|
3000
|
5000
|
8000
|
10000
|
|
|
Wire rope
|
Average speed m/min
|
30
|
30
|
28
|
20
|
19
|
|
Dia/mm
|
9.3
|
15.5
|
21.5
|
26
|
30
|
|
|
Reduction box transmission ratio
|
31.5
|
23.34
|
40.17
|
23.34
|
23.34
|
|
|
Drum/mm
|
Diameter
|
190
|
325
|
406
|
500
|
550
|
|
Length
|
360
|
520
|
840
|
900
|
1000
|
|
|
motor
|
Power/kw
|
7.5
|
22
|
30
|
37
|
45
|
|
Rotating speed r/min
|
1440
|
715
|
864
|
960
|
960
|
|
|
weight/kg
|
460
|
1200
|
2700
|
4000
|
5000
|
|
Winch Project
