Overhead Crane 5 Ton
Rated lifting capacity:5 tons
Span range:3.5 m~28.5 m
Operating mode:Remote control or automatic control
Applicable: workshops, warehouses, and material yards in industries such as mechanical manufacturing, metallurgy, and logistics.

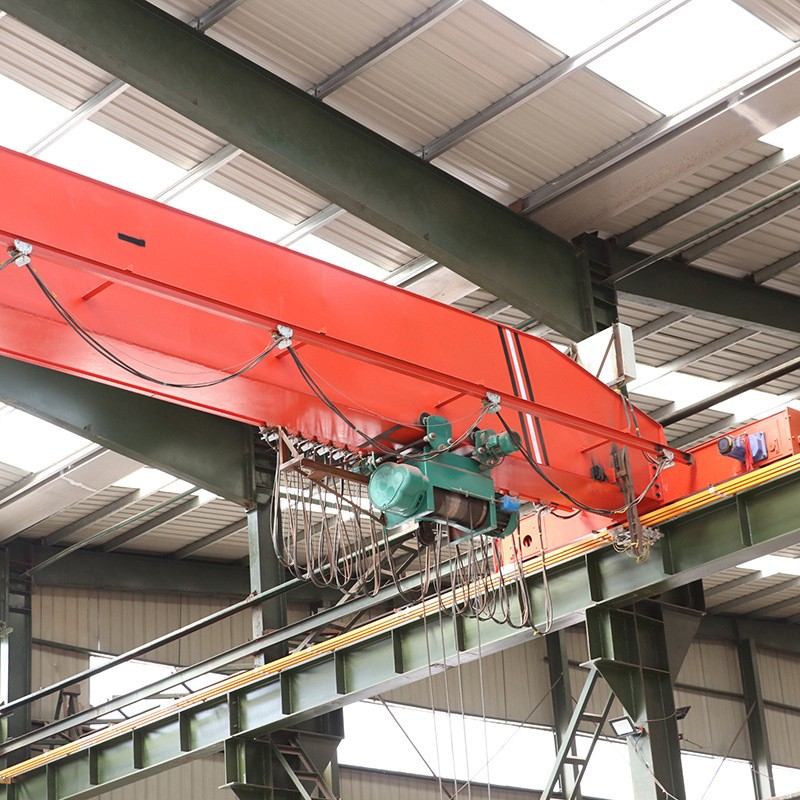

Overhead Crane 5 Ton is a type of lifting equipment used in workshops, warehouses and other places. It mainly achieves cargo lifting through electric hoists and features adjustable span and flexible operation.
Ideal Applications For A 5 Ton Overhead Crane
The overhead crane 5 tons is almost indispensable in the mechanical manufacturing industry. It is designed specifically for lifting and is highly suitable for the following industries:
Industrial manufacturing factory
Moving some heavy raw materials or components in the working area.
01
Warehouse
Used for lifting and transporting heavy items in stock, or for lifting and transporting higher goods to be loaded into trucks during factory shipments.
02
Automobile repair workshop
It is often seen in automobile repair shops, used for lifting and transporting heavy automotive components.
03
Steel manufacturing plant
Can handle steel structures, steel coils and other raw materials, and is equipped with hoisting equipment that is not afraid of high temperatures.
04
Choose LDA 5 Ton Overhead Crane Or European 5 Ton Overhead Crane?
For a general 5 ton bridge crane, there are two types to choose from, namely LDA 5 Ton Overhead Crane and European Style 5 Ton Overhead Crane. The choice depends on your own requirements.

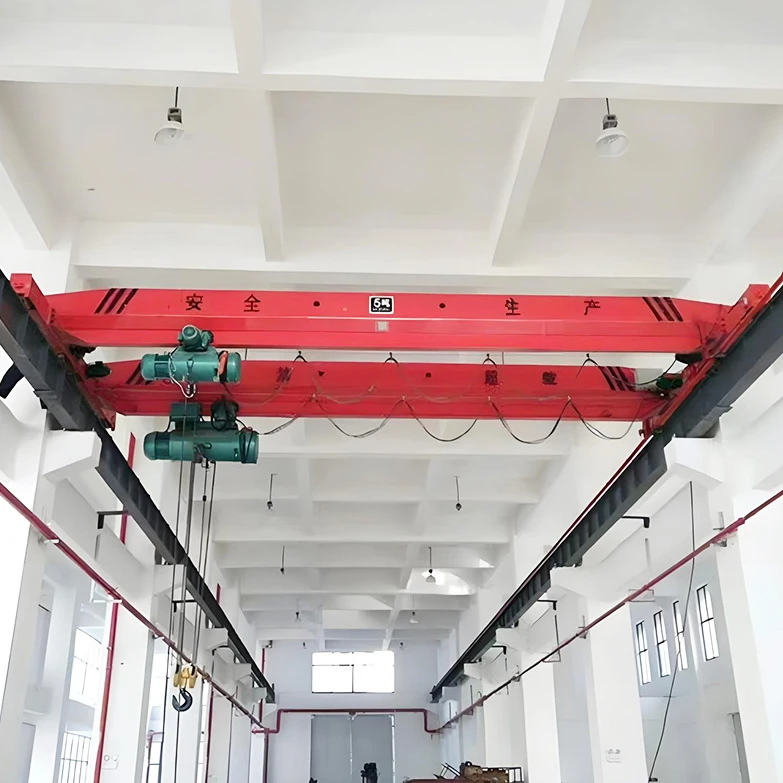

LDA 5 Ton Overhead Crane
- Application scenario: Suitable for environments where there is ample space above the factory building and the operation speed is not fast.
- Advantages: Cost-effective. Compared to European-style, the LDA series overhead bridge cranes are cheaper and have lower initial investment costs. Convenient for transportation, with separate loading and unloading.

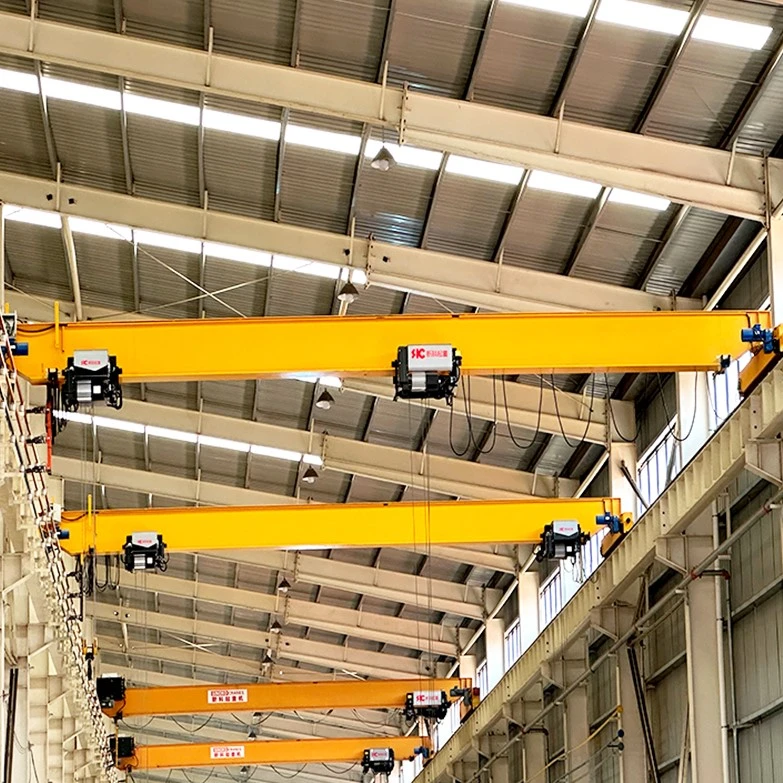

European 5 Ton Overhead Crane
- Application scenario: Suitable for environments with limited space above factories and where operations are relatively stable. It can be used in workshops, warehouses, etc.
- Advantages: Low clearance design, the product has a relatively light weight, the operation structure adopts modular design, which is convenient for installation. It uses a new type of European-style electric wire rope hoist, ensuring smoother operation.
5 Ton Overhead Crane Technical Parameter Comparison Table
Below are the standard specifications for our 5 ton overhead crane models. All parameters can be customized to your facility.
| Parameter | LDA 5 Ton Overhead Crane | European 5 Ton Overhead Crane |
|---|---|---|
| Lifting Capacity | 5 Ton | 5 Ton |
| Span (m) | 7.5 - 22.5m | 10.5 - 28.5m |
| Lifting Height (m) | 6 - 30m | 6-18m |
| Lifting Speed (m/min) | 8/0.8 (7/0.7)m/min | 0.8/5.0m/min |
| Work Duty | A3 | M5-M6 |
| Control Mode | Pendant / Remote | Pendant / Remote |
| Estimated Price Range | $12,000 - $25,000 | $18,000 - $35,000 |
*Price is for the crane equipment only. Final cost depends on span, lifting height, and configuration. Contact us for an exact quote.
Customize Your 5 Ton Overhead Crane
We understand that every facility is unique. Our 5 ton overhead cranes can be customized with:

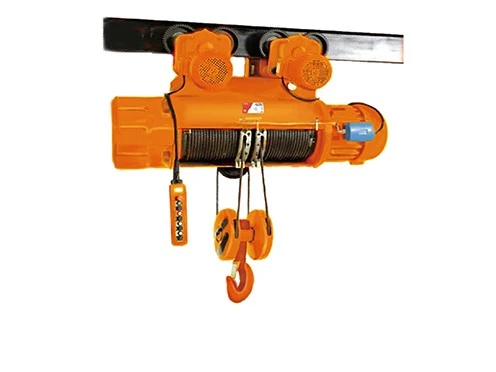

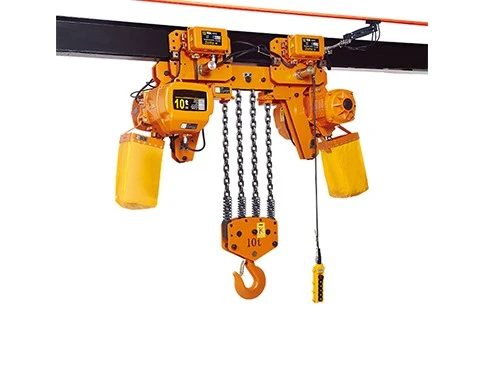

Lifting mechanism: European style wire rope hoists, CD/MD wire rope hoists, electric chain hoists.
Remote control system: Wired pendant remote control, industrial wireless remote control.
Special environments: Flammable and explosive environments, high-temperature and high-pressure environments.
Safety system: Limiters, anti-collision and drive systems, etc.
Why Choose KINO CRANES For Your 5 Ton Overhead Crane?
🏆Years of Production Experience
Kinocranes has years of production and manufacturing experience and is a professional manufacturer. Welcome to visit us for a site inspection.
🔧Affordable Price
We are a manufacturer and do not have middlemen to make a profit margin. The price is the factory price directly.
🌍Worldwide Delivery
We support shipping and installation services to various countries, and we have sufficient foreign trade experience.
📜International Standard Certification
All our cranes, hoists, and hooks are all CE certified and ISO certified.
Frequently Asked Questions (FAQ)
What Is The Lead Time For A 5 Ton Overhead Crane?
The standard production time for a 5 ton overhead crane is 30-45 days after order confirmation. This can vary based on the level of customization.
Does The Price Include Installation?
The equipment price is typically quoted separately from installation. We can provide a turnkey quote that includes professional installation by our experienced team.
Can My Building Support A 5 Ton Crane?
This requires our engineers to conduct an assessment of your site. If the structure of your runway beams is not sturdy enough, we can provide guidance on reinforcement. However, in most cases, no special reinforcement is necessary.
